SN93700 series, which is a completed solution for all types of wireless HD (HD),
Full HD (FHD) application. The SN93700 series equipped with 32bit ARM9 CPU core, integrated
H.264 high profile coding engine, built a new generation of image processing engine
ISP (Image Signal Processing) and the new generation of software FHSS baseband engine
... and so on. The new FHSS baseband engine of SN93700 adopted software to avoid interference
and eliminate transmission blind spots that can improve the performance and stability
effectively, besides that the power consumption of SN93700 is also lower than the
previous products with more power saving advantages.The most important thing of wireless
video solution is to solve the power supply problem. The usage of battery-power for
cameras not only can make products real wireless but also can insure that the cameras
still operate smoothly outdoor and long-term usage.
The SN93700 series provide
three working modes i.e. WOR (Wakeup On Radio), ECO (Economy) and VOX (Voice Operated
Switch) for battery-powered applications. In WOR mode, only use two pieces of standard
18650 lithium battery, the image transmitter can work for up to six months. In normal
use, the solution with some advantages including low current when the cameras are
standby and support the functions of fast start and remote wireless fast wake up.
In ECO mode, the system can control the image transmitter in a zero radiation state
to insure home applications’ safety. In VOX mode, the solution uses ambient volume
as the trigger of video function that can optimize the power saving function.The SN93700
series also integrates a variety of interfaces including UART, I2C, I2S, SPI, SDIO,
MIPI Rx, RGB888, RTC, USB device / host, ADC / DAC, Ethernet, TV out ... and so on.
The series also can support the mainstream mobile phone full HD (FHD) display screen,
and provide 90 degrees function. With this feature, a device can be vertical screen
display into a horizontal screen display that makes the application to be more flexible
when users develop end products. Moreover, Sonix Technology provides a simple and
easy-to-use development environment and software development kit (SDK) for customers
to quickly develop products.

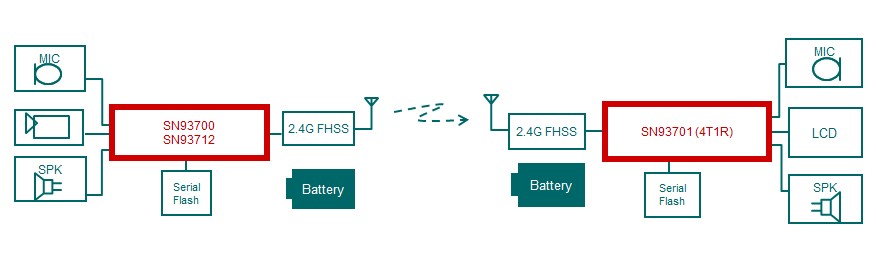

The SN93700 series can be used to develop various
applications such as: video baby monitor, wireless video surveillance cameras, wireless
video doorbell, video wireless rear camera solutions ... etc.SN93700 provides SONiX
latest ISP that significantly improving the image quality. Support multiple kinds
of RF chips, CMOS image sensors and video output interface for almost popular LCD
panels. Provide splendid graphical OSD and friendly user interface to significantly
enhance the user experience. Integrated a high quality mono audio ADC with microphone
amplifier, mono audio DAC and USB Host/Device interfaces compliance to USB 2.0 standard
and UVC spec.
