The SN8P27142 is a RISC-like high performance and low power consumption 8-bit micro-controller.
One clock per instruction cycle (1T) architecture will provide up to 16MIPS computation
power. Also, the high EFT (Electrical Fast Transients) protection capability let this

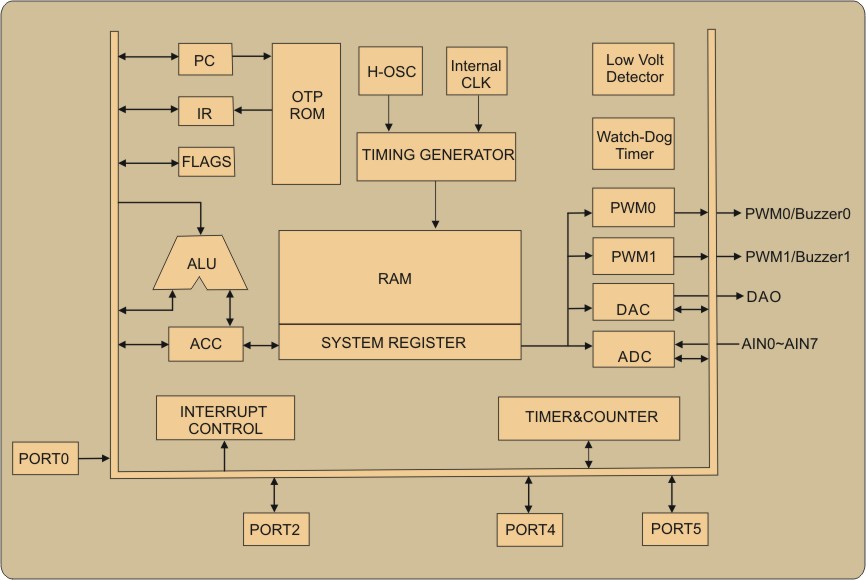

device is suitable for high noisy industrial application. The device is designed with
the excellent IC structure including the program memory up to 2K-word OTP ROM, data
memory of 128-bytes RAM, two 8-bit timer counters (TC0, TC1), a watchdog timer, four
interrupt sources (TC0, TC1, INT0, INT1), an 5-channel 12-bit ADC converter, two channels
PWM output (PWM0, PWM1), two channels buzzer output (BZ0, BZ1) and 8-level stack buffers.
There are four oscillator configurations to select for generating system clock, including
High/Low Speed crystal, ceramic resonator or cost-saving RC. This device also includes
an internal RC oscillator for slow mode controlled by programming.
