The SN8P2706A is a RISC-like high performance and low power consumption 8-bit micro-controller.
One clock per instruction cycle (1T) architecture will provide up to 16MIPS computation
power. Also, the high EFT (Electrical Fast Transients) protection capability let this
device is suitable for high noisy industrial application.

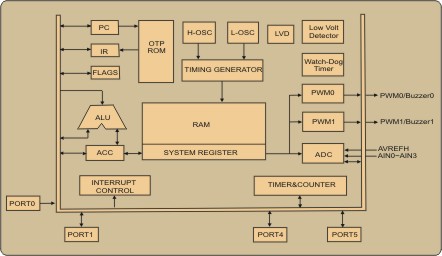

The device is designed with the excellent IC structure including the program
memory up to 4K-word OTP ROM, data memory of 256-bytes RAM, one 8-bit basic timer
(T0), two 8-bit timer counters (TC0, TC1), a watchdog timer, eight interrupt sources
(T0, TC0, TC1, SIO, ADC, INT0, INT1, INT2), a 7-bit DAC converter, an 8-channel 12-bit
ADC converter, two channels PWM output (PWM0, PWM1), two channels buzzer output (BZ0,
BZ1) and 8-level stack buffers. There are four oscillator configurations to select
for generating system clock, including High/Low Speed crystal, ceramic resonator or
cost-saving RC. This device also includes an internal RC oscillator for slow mode
controlled by programming.
