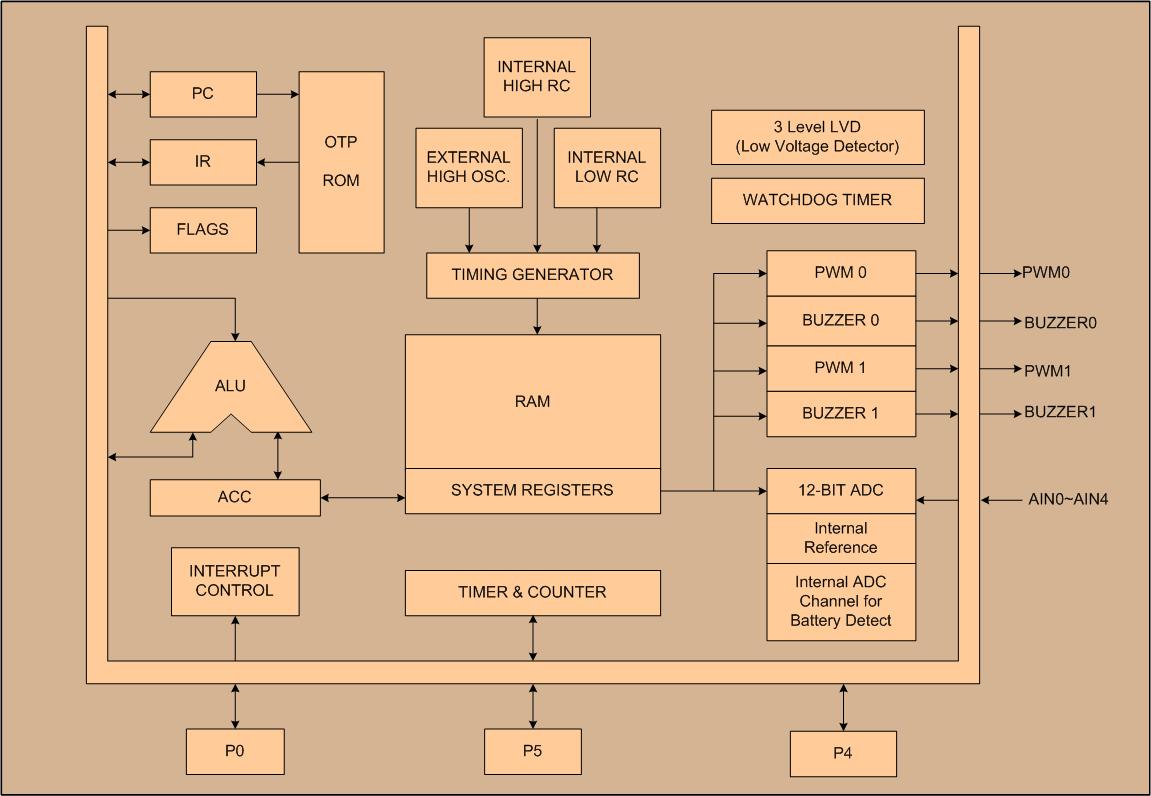

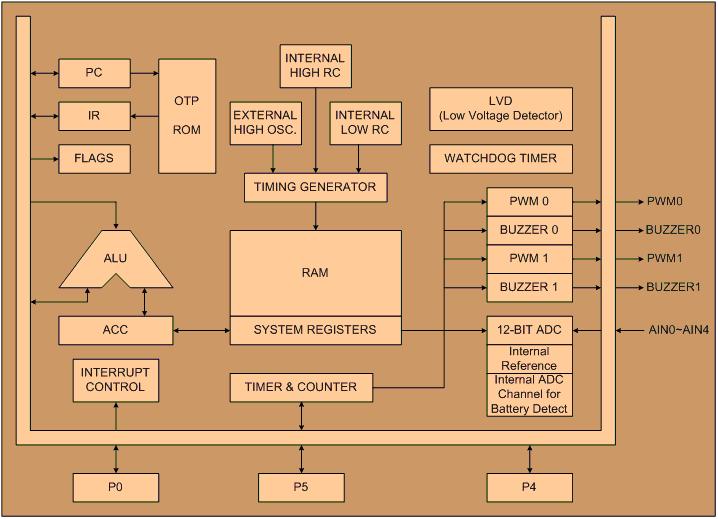

The SN8P2711B is a RISC-like high performance and low power consumption 8-bit micro-controller.
One clock per instruction cycle (1T) architecture will provide up to 16MIPS computation
power. Also, the high EFT (Electrical Fast Transients) protection capability let this
device is suitable for high noisy industrial application. The device is designed with
the excellent IC structure including the program memory up to 1K-word OTP ROM, data
memory of 64-bytes RAM, two 8-bit timer counters (TC0, TC1), a watchdog timer, five
interrupt sources (TC0, TC1, ADC, INT0, INT1), an 5+1 channel 12-bit ADC converter
(one internal ADC channel for VDD measurement), two channels PWM output (PWM0, PWM1),
two channels buzzer output (BZ0, BZ1) and 4-level stack buffers. There are four oscillator
configurations to select for generating system clock, including High/Low Speed crystal,
ceramic resonator or cost-saving RC. This device also includes an internal 16MHz RC
oscillator for system clock and includes an internal low frequency RC oscillator for
slow mode controlled by programming.
