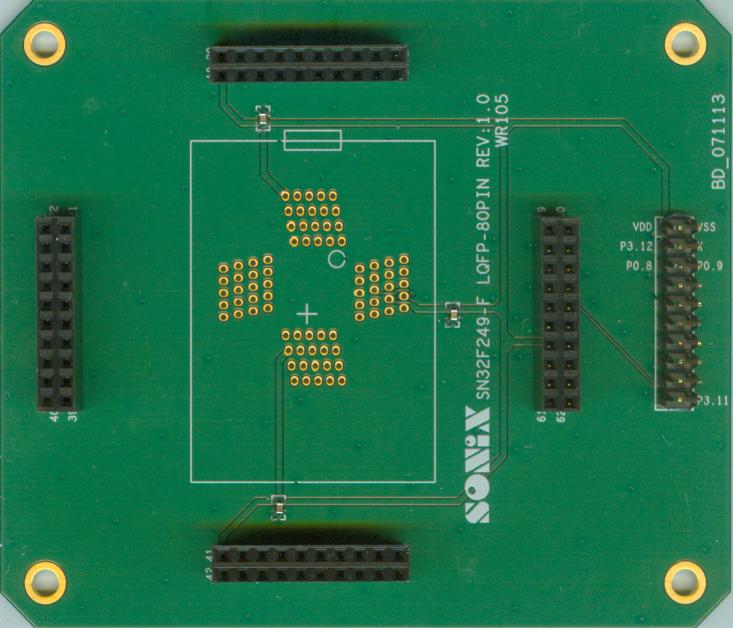

TB-WR105
TB-WR105
-
Name
-
MCU
SN32F229F;SN32F239F;SN32F249F
-
Notation
LQFP
-
Features
1. Not more than 48pins: If choose MPIII Writer or MP Writer， plug the corresponding Writer Transition Board into MPIII Writer or MP Writer， then place MCU on the Text Tool of MPIII Writer or MP Writer. Now it's ready for programming.
2. More than 48pins: Choose MPIII Writer or MP Writer， connect the correct Writer Transition Board with MPIII Writer or MP Writer via 20pin parallel cable， and place MCU on the Socket of Writer Transition Board before programming.
