SN8F5711 is an 8-bit architecture microcontroller which compatible with MCS-51 instruction
set. It runs at up to 12.1 times faster than the original 8051 at the same frequency.
Meanwhile, its advanced semiconductor technology provides a wide range operation voltage,
from 1.8 V to 5.5 V, and working temperature between -40°C and 85°C at 32 MHz CPU

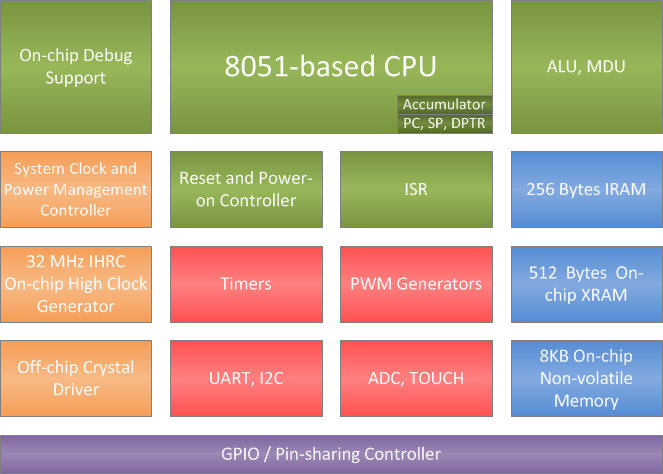

The microcontroller builds in a 8 KB flash memory (IROM), 256 bytes internal
RAM (IRAM) and 512 bytes on-chip external RAM (XRAM). A hardware MDU dramatically
improves mathematical operations performance. Furthermore, a 13 input channels/12-bit
resolution ADC, 15 channels capacitive touch, single PWM generator, interfaces (UART,
I2C) and 16-bit timers were designed to fit in the vast majority of consumer electronics,
home automation and capacitive touch applications.
