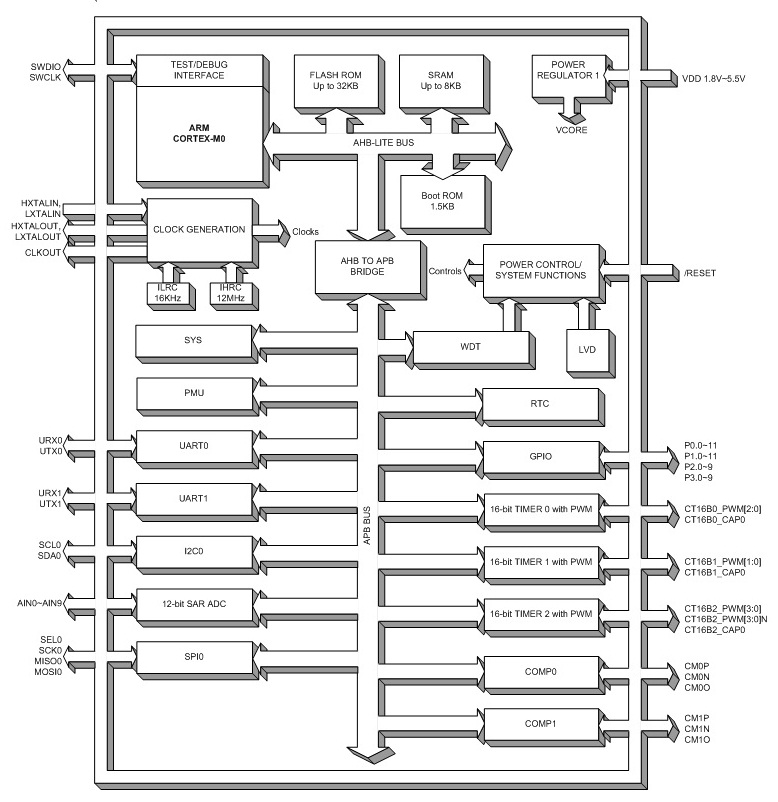

SN32F705B series 32-bit micro-controller is a new series of extremely Low Power Consumption
and High Performance MCU powered by ARM Cortex-M0 processor with Flash ROM architecture.
SN32F700B series MCU is high performance and wide operating range (1.8V~5.5V, 48 MHz
maximum frequency). The device is designed with the excellent IC structure including
the program memory up to 32KB Flash ROM, data memory of 8KB RAM, Nested Vectored Interrupt
Controller (NVIC), three 16-bit timers, I2C, SPI, UART interfaces, 10+1-channel 12-bit
SAR ADC, two comparators, and flexible operating modes. There are several system clock
sources, including internal 12MHz RC oscillator, internal 16KHz RC oscillator, external
High Speed crystal, external Low Speed crystal, and PLL. Under Flash ROM platform,
SN32F700B series MCU builds in in-system-programming (ISP) function extending to EEPROM
emulation. Powerful functionality, high reliability and low power consumption can
apply to battery level application easily.
