SNC86080A

產品描述

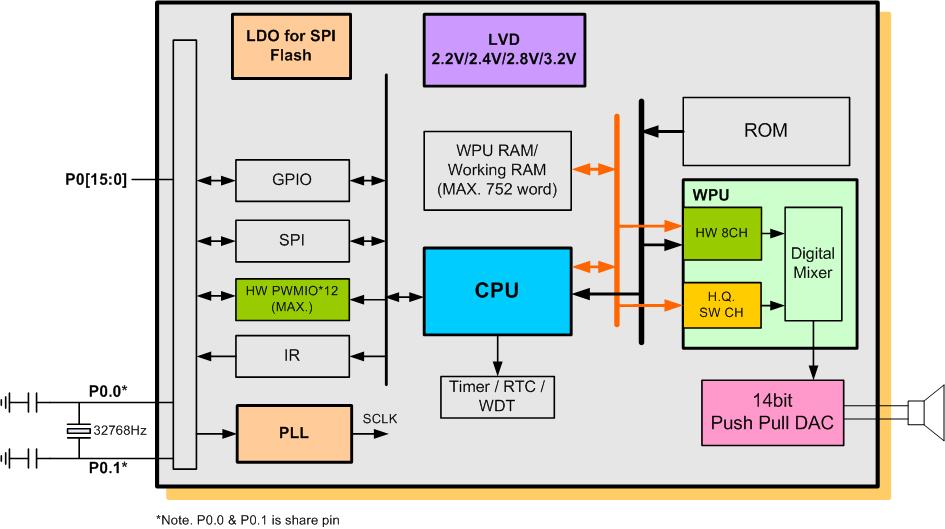

The SNC86080A 12MHz 16-bit RISC controller series with embedded multi-channel 8 hardware Voice/MIDI Wave Processing Unit (WPU). In addition to having multi-channel hardware channels, one software high quality voice channel with SONiX HQDPCM algorithm is provided.

Key peripherals include a single high quality 14bit DAC with push-pull amplifier, three external interrupts, 8 PWMIOs, serial peripheral interface (SPI), one 8-bit timer and two 12-bit timers. The device features provide idle mode for real-time clock (RTC) applications and sleep mode for power savings.
The SNC86KA contains a Low Voltage Detector (LVD) for power management usage. The status of internal or external power can be detected and reported to the management software. There is a Low Voltage Reset (LVR) function provided to keep the whole system from losing data when voltage drops to a low level.
