SN32F790 series 32-bit micro-controller is a new series of extremely Low Power Consumption
and High Performance MCU powered by ARM Cortex-M0 processor with Flash ROM architecture.
SN32F790 series MCU is high performance and wide operating range (2.5V~5.5V, 72 MHz

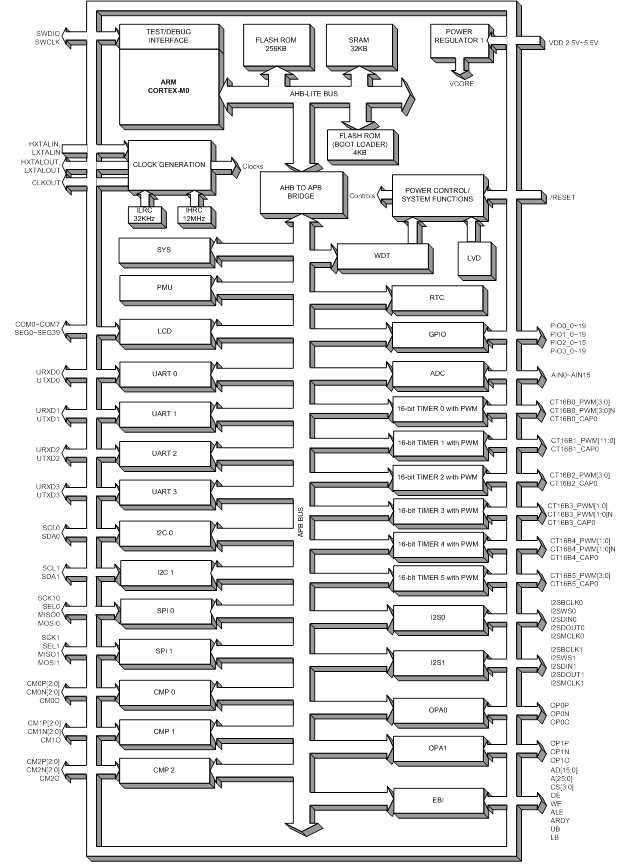

maximum frequency). The device is designed with the excellent IC structure including
the program memory up to 256KB Flash ROM, data memory of 32KB RAM, Nested Vectored
Interrupt Controller (NVIC), six 16-bit timers, I2C, SPI, UART, I2S , EBI interfaces,
4x40/6x38/7x37/6x36 LCD drive, 16+3-channel 12-bit SAR ADC, three comparators, two
OP amplifiers, 24 capacitive touch keys, CRC, and flexible operating modes. There
are several system clock sources, including internal 12MHz RC oscillator, internal
32KHz RC oscillator, external High Speed crystal, external Low Speed crystal, and
PLL. Under Flash ROM platform, SN32F790 series MCU builds in in-system-programming
(ISP) function extending to EEPROM emulation. Powerful functionality, high reliability
and low power consumption can apply to battery level application easily.
