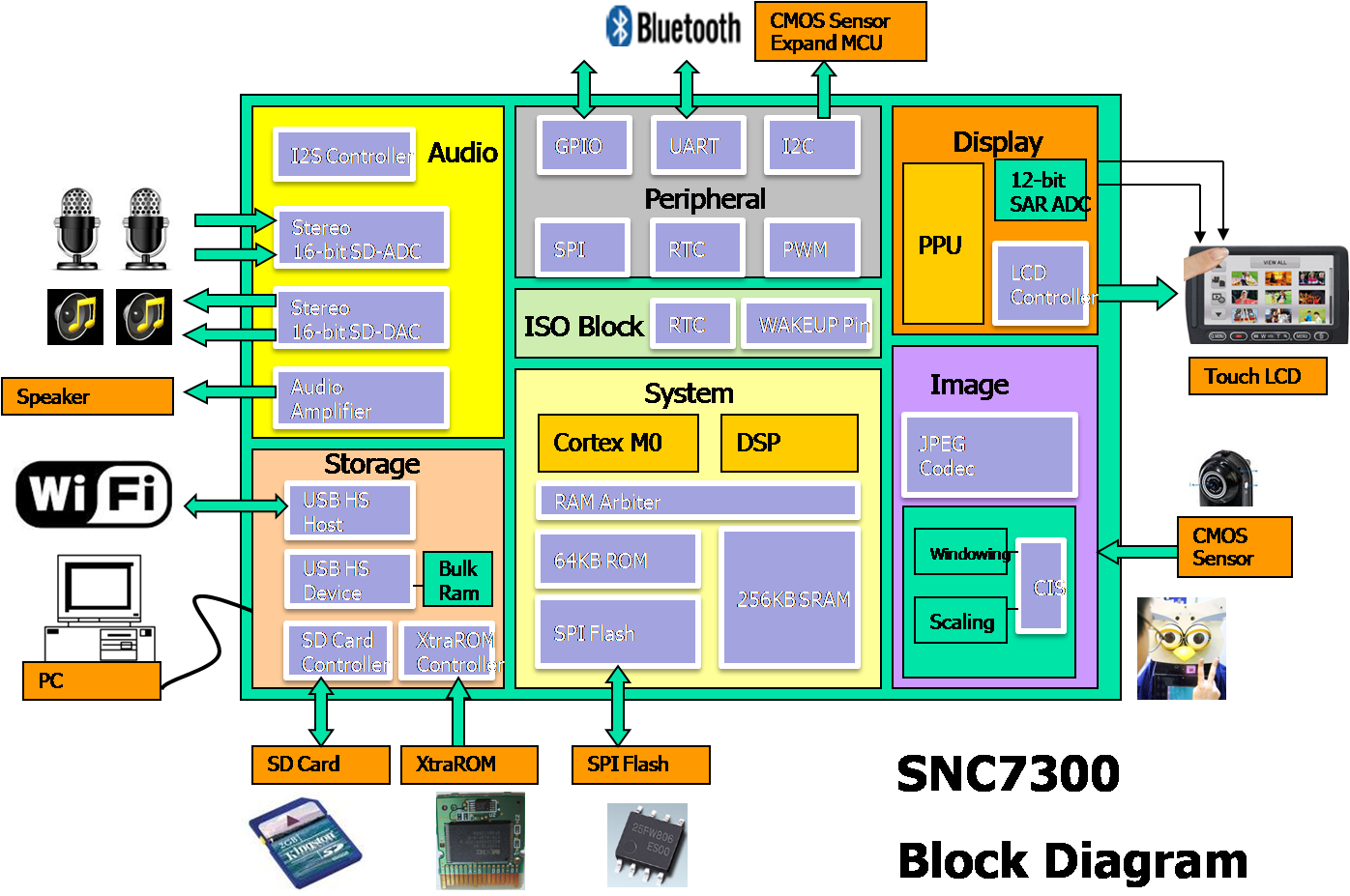

The SNC73001 chip is the first 32-bit CortexTM M0 processor for multi-media application.
It runs up to 96MHz and optimizes ARM CMSIS Standard DSP Library. SNC73001, compare
to other M0 processor, it has better audio process ability and is comparable with
CMSIS DSP Library provided by ARM. SNC73001 not only support stereo MP3/WMA playback,
but also provides some advance audio algorithm: voice charger, beat detection…and
so on. With ARM integrate development environment, such as Keil, user can easily
start up their system. In image process filed, cmos sensor interface and PPU are equipped
with SNC73001. PPU helps to 2D picture moving and game design. Compare with other
competitors, SNC73001 can run all kinds of application in on-chip ram and has no need
of external memory, highly save the bom cost and PCB dimension.
