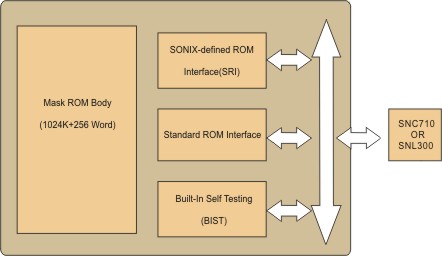

The SNR016 is a signal power, 16M-bit, read only memory. It is organized as 2M bytes,
operates for single 3V power supply, support static standby mode. The SNR016 embedded
two different interfaces, one is a standard 8-bit interface bus which compatible with
SNL310, another one is a special 8-bit AD (address/data) bus which compatible with
SNC710. SNR016 offers automatic power-down, with power-down controlled by the chip
enable “CEB”. When chip enable goes to high, SNR016 will entry power-down mode in
order to save the power consumption.
