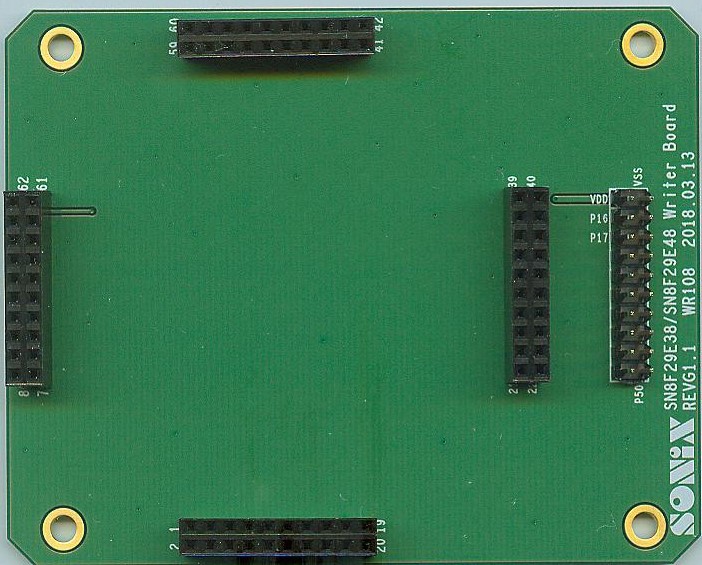

TB-WR108
TB-WR108
-
Name
-
MCU
SN8F29E38/29E48F
-
Notation
LQFP80
-
Features
1. IC腳位小於或等於48pin者: 使用MP5-Writer燒錄MCU時,將相對應MCU型號的Writer Transition Board安插於MP5-Writer上,再將MCU放置於MP5-Writer上的Text Tool即可燒錄。
2. IC腳位超過48pin者: 使用MP5-Writer燒錄MCU時,將相對應MCU型號的Writer Transition Board透過20pin排線接至MP5-Writer上,再將MCU放置於MP5-Writer上的Socket即可燒錄。
