SN8F25E25L series 8-bit micro-controller is a new series production applied advanced
semiconductor technology to implement flash ROM architecture. SN8F25E25L is RISC-like
high performance and wide operating range (1.8V~5.5V @16mips). One clock per instruction
cycle (1T) architecture will provide up to 16MIPS computation power. The device is

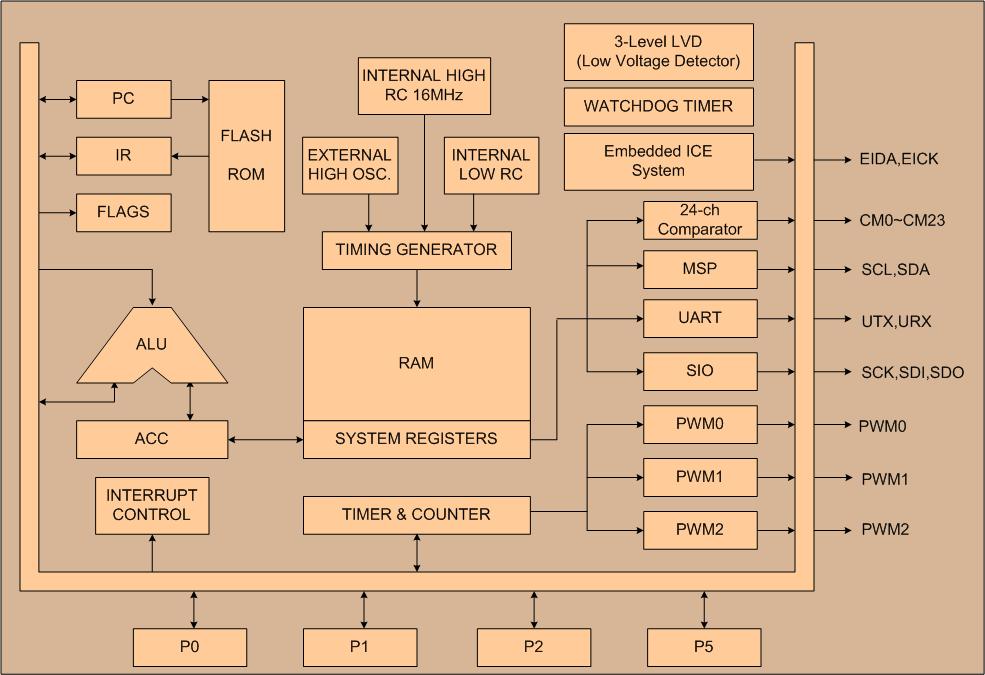

designed with the excellent IC structure including the program memory up to 8K-word
Flash ROM, data memory of 1024-bytes RAM, 8-level stack buffers, multi-interrupt vector,
four 8-bit timers, high performance 24-ch comparators, 3-set individual programmable
PWMs, 3-type serial interfaces and flexible operating modes. There are three oscillator
configurations to select for generating system clock, including High Speed crystal,
ceramic resonator or cost-saving RC. This device also includes an internal 16MHz RC
oscillator for system clock. Under flash ROM platform, SN8F25E25 builds in in-system-programming
(ISP) function extending to EEPROM emulation and Embedded ICE function. Powerful functionality,
high reliability and low power consumption can apply to AC power application and battery
level application easily.
