SN8F27E64L series 8-bit micro-controller is a new series production applied advanced
semiconductor technology to implement flash ROM architecture. SN8F27E64L is RISC-like
high performance and wide operating range (1.8V~3.3V @16mips). One clock per instruction

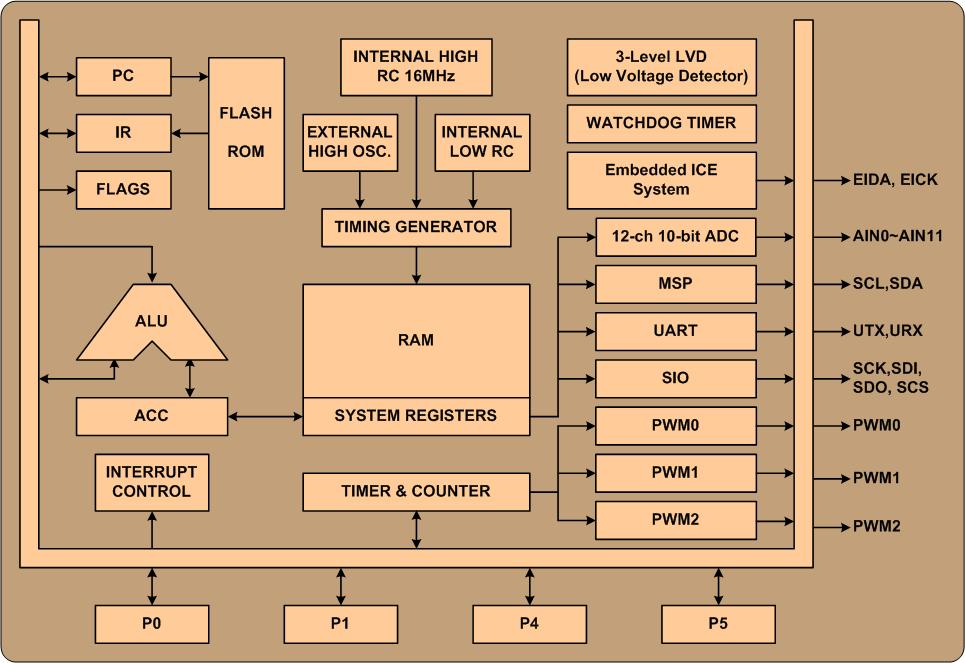

cycle (1T) architecture will provide up to 16MIPS computation power. The device is
designed with the excellent IC structure including the program memory up to 6K-word
Flash ROM, data memory of 512-bytes RAM, 8-level stack buffers, multi-interrupt vector,
four 8-bit timers, one 16-bit timer, high performance 11-ch 10-bit ADC, 3-set individual
programmable PWMs, 3-type serial interfaces and flexible operating modes. There are
three oscillator configurations to select for generating system clock, including High
Speed crystal, ceramic resonator or cost-saving RC. This device also includes an internal
16MHz RC oscillator for system clock. Under flash ROM platform, SN8F27E64L builds
in in-system-programming (ISP) function extending to EEPROM emulation and Embedded
ICE function. Powerful functionality, high reliability and low power consumption can
apply to AC power application and battery level application easily.
