SN8F27E61 series 8-bit micro-controller is a new series production applied advanced
semiconductor technology to implement flash ROM architecture. SN8F27E61 is RISC-like
high performance and wide operating range (1.8V~5.5V @16mips). One clock per instruction

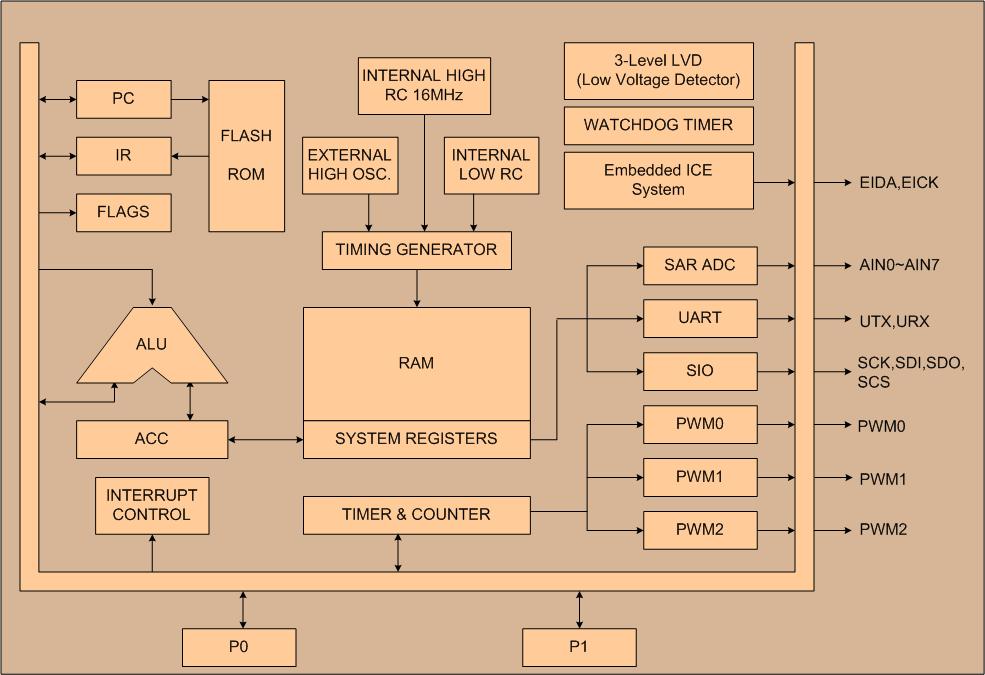

cycle (1T) architecture will provide up to 16MIPS computation power. The device is
designed with the excellent IC structure including the program memory up to 2K-word
Flash ROM, data memory of 128-bytes RAM, 8-level stack buffers, multi-interrupt vector,
four 8-bit timers, high performance 8-ch 10-bit ADC, 3-set individual programmable
PWMs, 2-type serial interfaces and flexible operating modes. There are three oscillator
configurations to select for generating system clock, including Low Speed crystal,
ceramic resonator or cost-saving RC. This device also includes an internal 16MHz RC
oscillator for system clock. Under flash ROM platform, SN8F27E61 builds in in-system-programming
(ISP) function extending to EEPROM emulation and Embedded ICE function. Powerful functionality,
high reliability and low power consumption can apply to AC power application and battery
level application easily.
