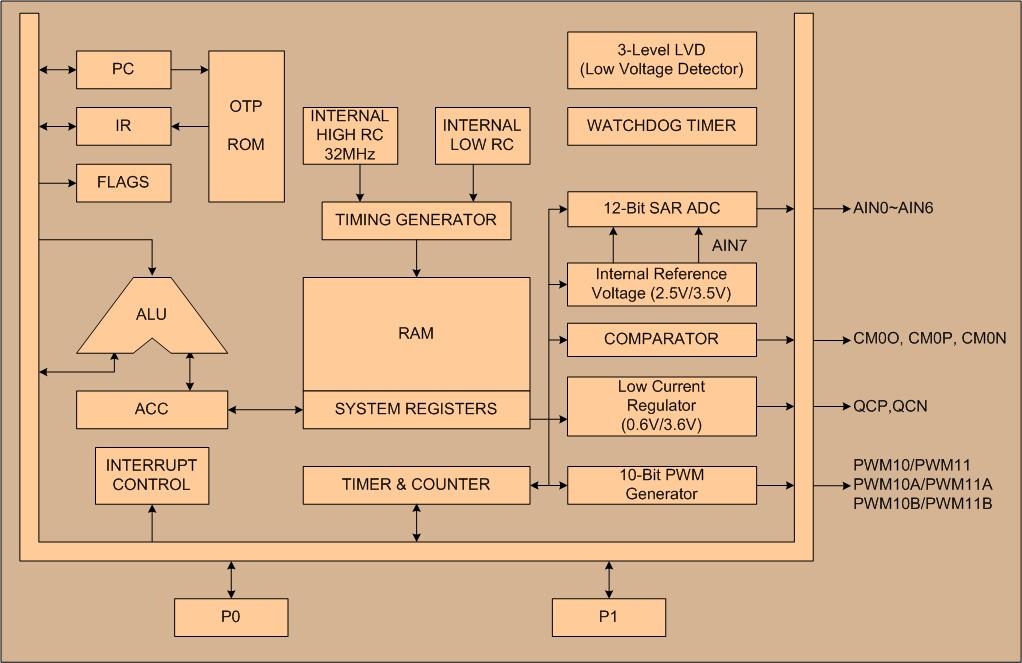

The SN8P2761 is a RISC-like high performance and low power consumption 8-bit micro-controller.
The device is designed with the excellent IC structure including the program memory
up to 1K-word OTP ROM, data memory of 64 bytes RAM, one 8-bit timer (T0), five interrupt
sources (INT0, T0, PWM, ADC, CM0), one 10-bit timer/duty cycle programmable PWM, 3
pairs PWM output pins (PWM10/PWM11, PWM10A/PWM11A, PWM10B/PWM11B, each pair has one
normal PWM and one dead-band PWM), a watchdog timer, 7+1-channel 12-bit ADC converter,
one-set Comparator with internal reference voltage, two low current regulator output
(3.6V/0.6V), and 4-level stack buffers. There are two oscillator configurations to
select for generating system clock, including an internal 32MHz RC oscillator and
an internal low frequency RC oscillator for slow mode controlled by program.
