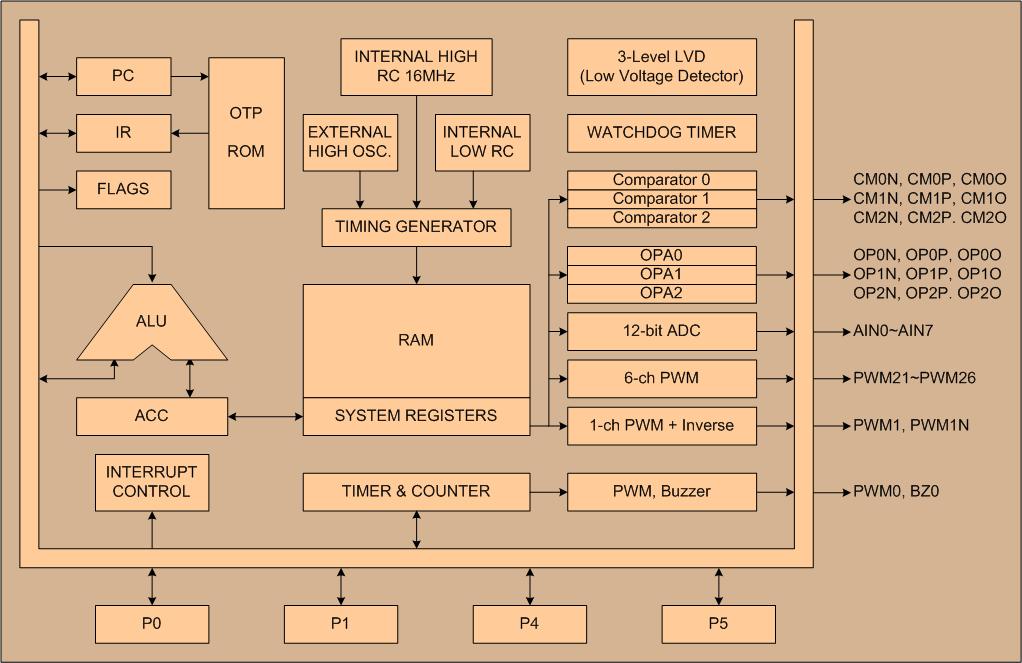

The SN8P2733 is a RISC-like high performance, low power consumption and industrial
class 8-bit micro-controller. The device is designed with the excellent IC structure
including the program memory up to 6K-word OTP ROM, data memory of 256 bytes RAM,
two 8-bit timer counters (T0, TC0), one 16-bit timer (T1), a watchdog timer, Nine
interrupt sources (T0, TC0, T1, INT0, INT1, INT2, ADC, CM0, CM1), one channel 8-bit
PWM/Buzzer output (PWM0/BZ0), Two channel 8~12-bit PWM output (PWM1), 1-channel 8~12-bit
PWM output (PWM2), 8-channel 12-bit ADC converter, 2 sets OP-amp with comparator
function, and 8-level stack buffers. There are four oscillator configurations to select
for generating system clock including external High/Low Speed crystal, ceramic resonator
or internal cost-saving RC, an internal 16MHz RC oscillator for system clock and an
internal low frequency RC oscillator for slow mode controlled by programming.
