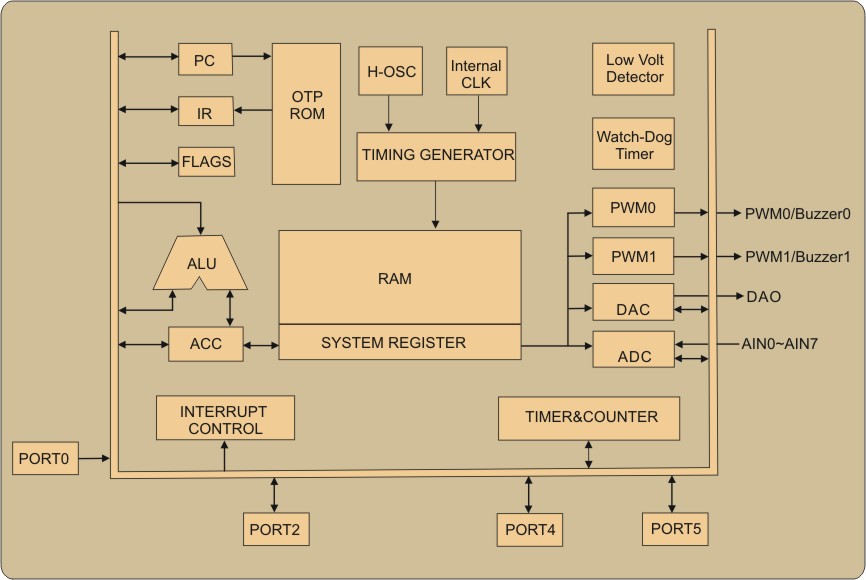

The SN8P2715 is a RISC-like high performance and low power consumption 8-bit micro-controller.
One clock per instruction cycle (1T) architecture will provide up to 16MIPS computation
power. Also, the high EFT (Electrical Fast Transients) protection capability let this
device is suitable for high noisy industrial application. The device is designed with
the excellent IC structure including the program memory up to 2K-word OTP ROM, data
memory of 128-bytes RAM, two 8-bit timer counters (TC0, TC1), a watchdog timer, four
interrupt sources (TC0, TC1, INT0, INT1), a 7-bit DAC converter, an 8-channel 12-bit
ADC converter, two channels PWM output (PWM0, PWM1), two channels buzzer output (BZ0,
BZ1) and 8-level stack buffers. There are four oscillator configurations to select
for generating system clock, including High/Low Speed crystal, ceramic resonator or
cost-saving RC. This device also includes an internal RC oscillator for slow mode
controlled by programming.
