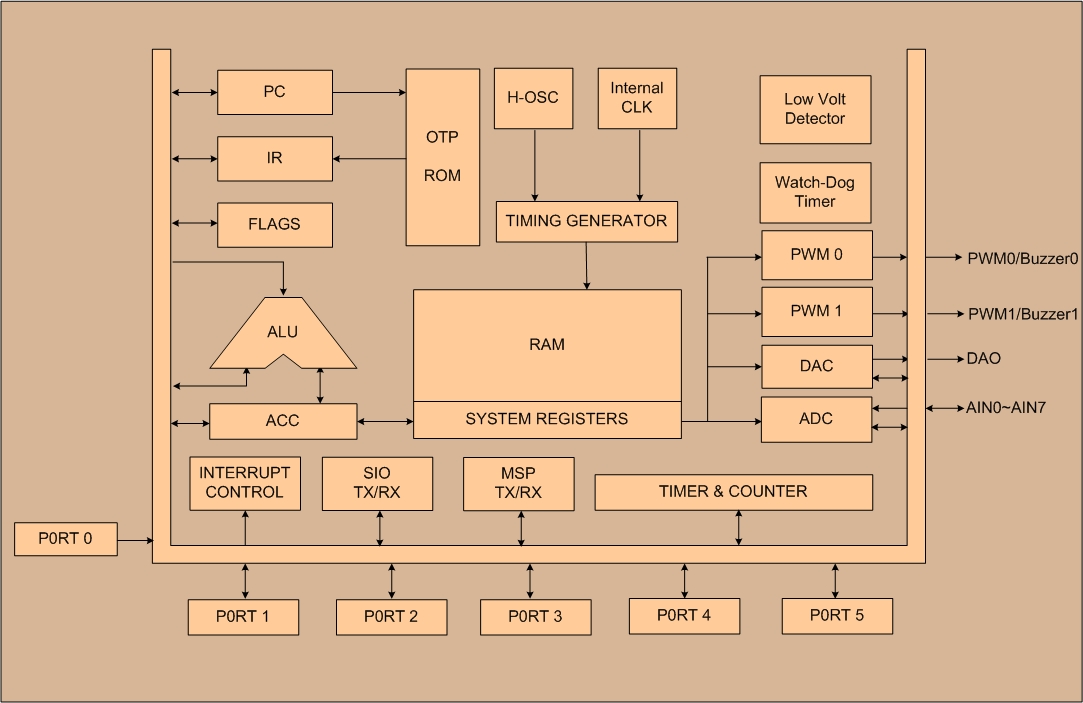

SN8P2758 is designed with the excellent IC structure including the program memory
up to 4K-word OTP ROM, data memory of 256-bytes RAM, one 8-bit basic timer (T0), two
8-bit timer counters (TC0, TC1), a watchdog timer, nine interrupt sources (T0, TC0,
TC1, SIO, ADC,MSP, INT0, INT1, INT2), a 7-bit DAC converter, an 8-channel 12-bit ADC
converter, two channels PWM output (PWM0, PWM1), two channels buzzer output (BZ0,
BZ1) and 8-level stack buffers. There are four oscillator configurations to select
for generating system clock, including High/Low Speed crystal, ceramic resonator or
cost-saving RC. This device also includes an internal RC oscillator for slow mode
controlled by programming.
