SN8F26E65 series 8-bit micro-controller is a new series production applied advanced
semiconductor technology to implement flash ROM architecture. SN8F26E65 is RISC-like
high performance and wide operating range (1.8V~5.5V @16mips). One clock per instruction

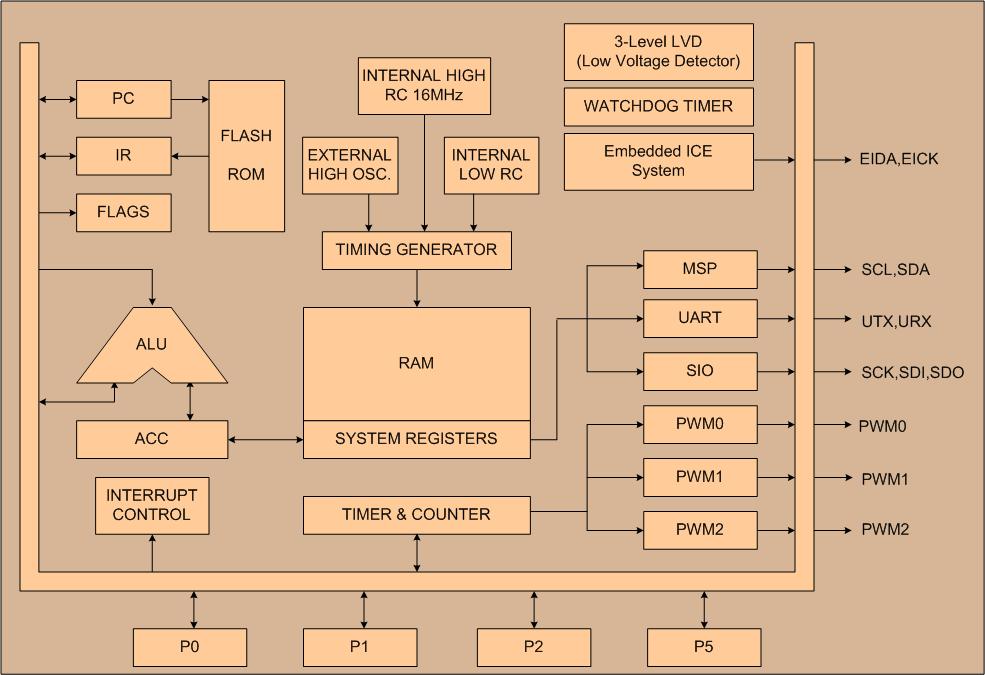

cycle (1T) architecture will provide up to 16MIPS computation power. The device is
designed with the excellent IC structure including the program memory up to 8K-word
Flash ROM, data memory of 1024-bytes RAM, 8-level stack buffers, multi-interrupt vector,
four 8-bit timers, 3-set individual programmable PWMs, 3-type serial interfaces and
flexible operating modes. There are three oscillator configurations to select for
generating system clock, including High Speed crystal, ceramic resonator or cost-saving
RC. This device also includes an internal 16MHz RC oscillator for system clock. Under
flash ROM platform, SN8F26E65 builds in in-system-programming (ISP) function extending
to EEPROM emulation and Embedded ICE function. Powerful functionality, high reliability
and low power consumption can apply to AC power application and battery level application
easily.
