The SN8P2614 is a RISC-like high performance and low power consumption 8-bit micro-controller.
Four clocks per instruction cycle (4T) architecture will provide up to 16MIPS computation

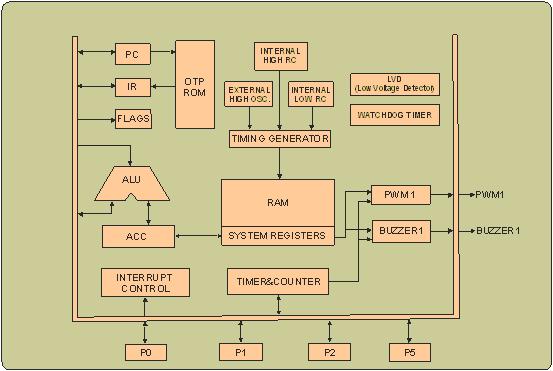

power. The device is designed with the excellent IC structure including the program
memory up to 6K-word OTP ROM, data memory of 192-bytes RAM, two 8-bit timer counters
(T0, TC1), a watchdog timer, four interrupt sources (T0, TC1, INT0, INT1), one channel
PWM output (PWM1), one channel Buzzer output (BZ1) and 8-level stack buffers. There
are four oscillator configurations to select for generating system clock, including
external High/Low Speed crystal, ceramic resonator or internal cost-saving RC, an
internal 16MHz RC oscillator for system clock and includes an internal low frequency
RC oscillator for slow mode controlled by programming.
