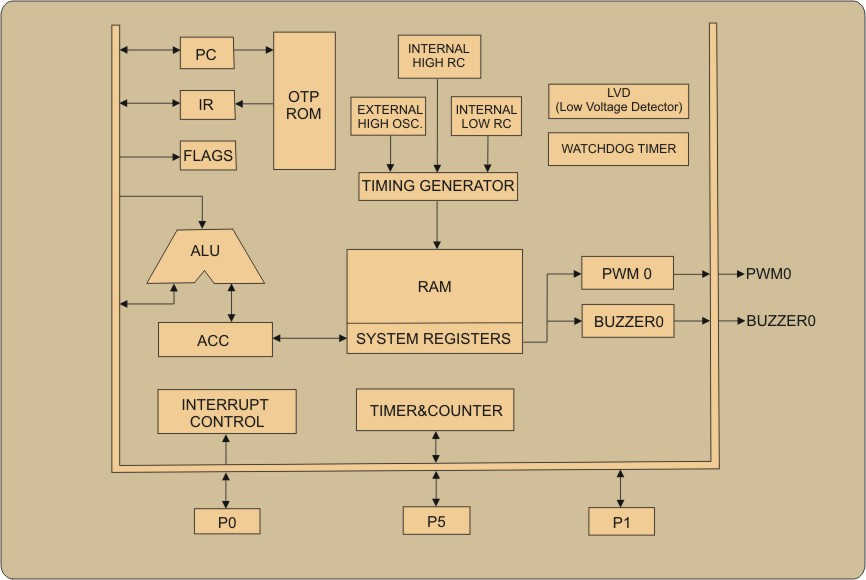

The SN8P2613 is a RISC-like high performance and low power consumption 8-bit micro-controller.
One clock per instruction cycle (1T) architecture will provide up to 16MIPS computation
power. Also, the high EFT (Electrical Fast Transients) protection capability let this
device is suitable for high noisy industrial application. The device is designed with
the excellent IC structure including the program memory up to 2K-word OTP ROM, data
memory of 64-bytes RAM, two 8-bit timer counters (T0, TC0), a watchdog timer, four
interrupt sources (T0, TC0, INT0, INT1), one channel PWM output (PWM0), one channel
buzzer output (BZ0) and 4-level stack buffers. There are four oscillator configurations
to select for generating system clock, including High/Low Speed crystal, ceramic resonator
or cost-saving RC. This device also includes an internal 16MHz RC oscillator for system
clock and includes an internal low frequency RC oscillator for slow mode controlled
by programming.
