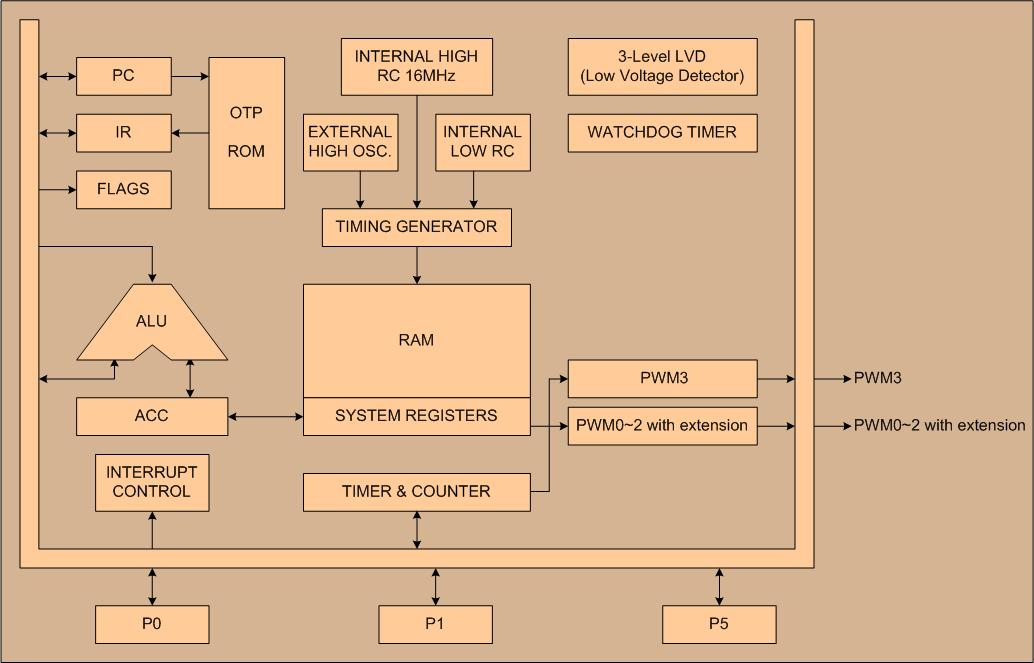

The SN8P2623 is a RISC-like high performance and low power consumption 8-bit micro-controller.
The device is designed with the excellent IC structure including the program memory
up to 2K-word OTP ROM, data memory of 64 bytes RAM, one 8-bit timer counters (T0+RTC)
, one 8-bit counters / timers PWM / Pulse / extension with 3-channel output (TC0),
a watchdog timer, three interrupt sources (T0, TC0, INT0), one 8-bit timers / PWM
(TC1), 20mA drive / sink current GPIO pin), pull-down resister (P5.0~P5.3), and 4-level
stack buffers. There are four oscillator configurations to select for generating system
clock, including external High/Low Speed crystal, ceramic resonator or external cost-saving
RC, an internal 16MHz RC oscillator for system clock and includes an internal low
frequency RC oscillator for slow mode controlled by programming.
