PKT_QFN24_05_4x4
PKT_QFN24_05_4x4
-
Part Number
-
Spec.
Leads: 24 pin
Body size:4x4mm
Pitch: 0.5mm -
Package Type
QFN 4x4 24 pin
-
PKT and Writer
QFN24 SOCKET.png
QFN24 4x4mm PKT on writer
-
IC and PKT
IC-QFN24 SOCKET.png

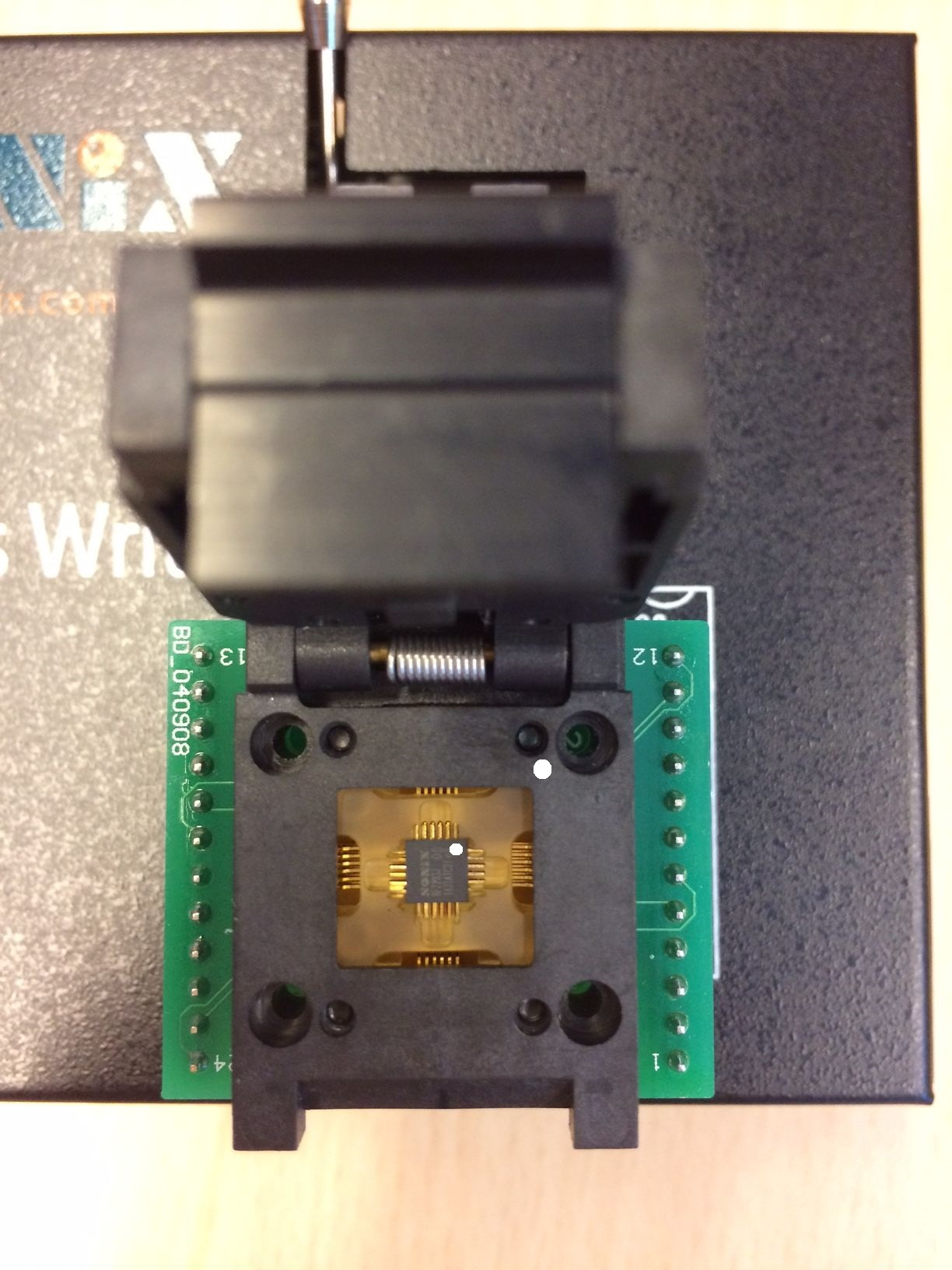

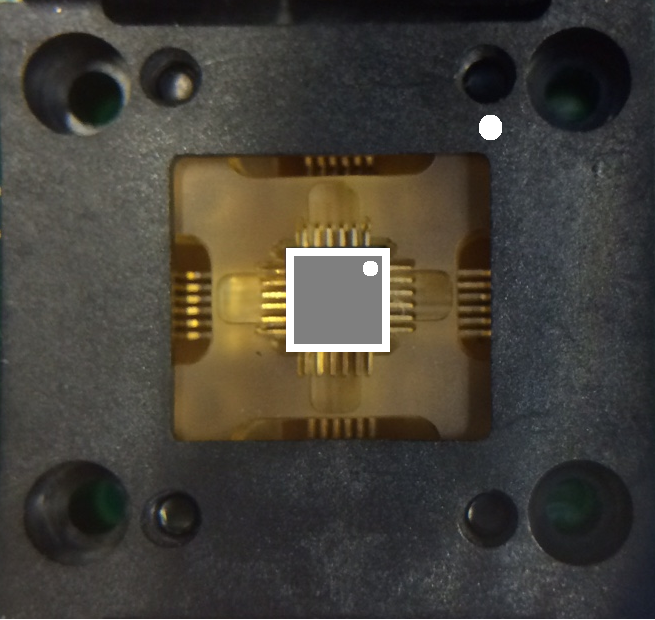

QFN24 4x4mm IC with PKT
-
How to use PKT with MPIII writer for Programming
Step1

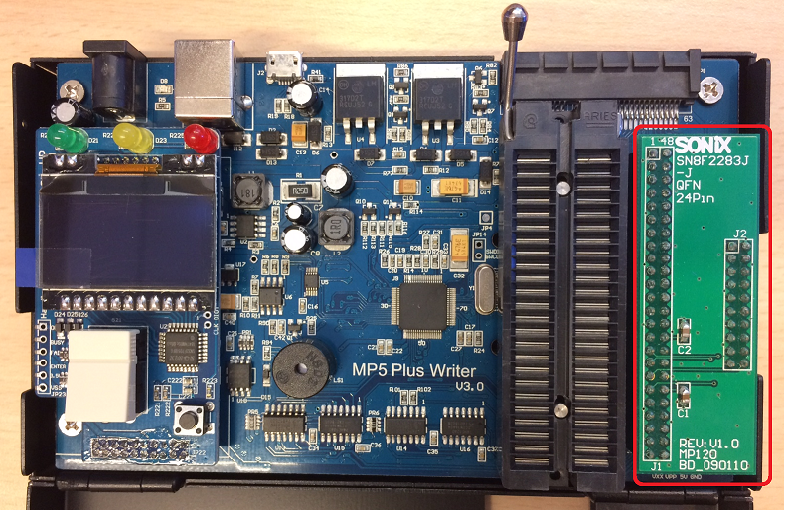

Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.
Step2

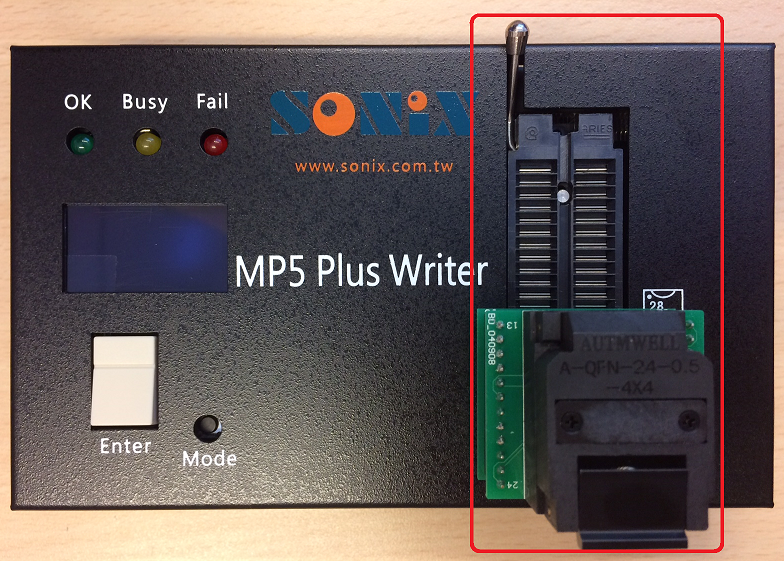

Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
