SN8F22E80B series 8-bit micro-controller is a new series production applied advanced
semiconductor technology to implement flash ROM architecture. SN8F22E80B is high performance
and wide operating range (1.8V~5.5V @32mips). One clock per instruction cycle (1T)

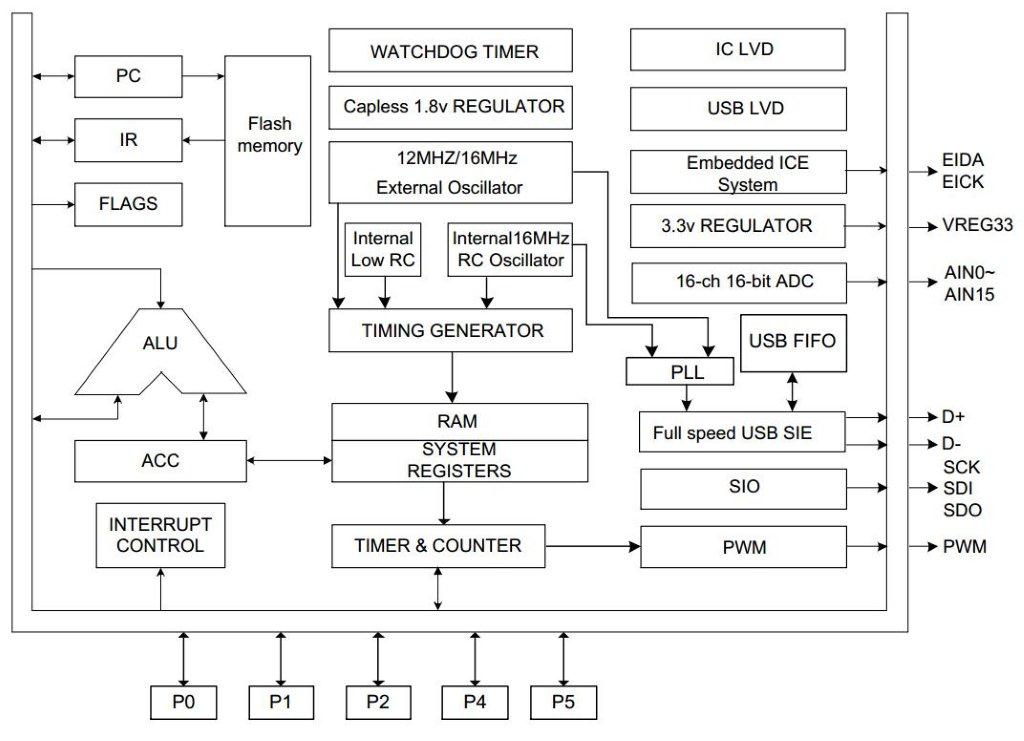

architecture will provide up to 32MIPS computation power. The device is designed with
the excellent IC structure including the program memory up to 16K-word Flash ROM,
data memory of 1K-bytes RAM, 8-level stack buffers, multi-interrupt vector, four 8-bit
timers, one 16-bit timers, high performance 16 channel 12-bit ADC, six channel PWM
output (PWM10/11, 20/21, 30/31), Full Speed USB 2.0. Under flash ROM platform, SN8F22E80B
builds in in-system-programming (ISP) function extending to EEPROM emulation and Embedded
ICE function. Powerful functionality, high reliability and low power consumption can
apply to AC power application and battery level application easily.
