SN8F5907C is an 8-bit architecture microcontroller which compatible with MCS-51 instruction
set. It runs at up to 12.1 times faster than the original 8051 at the same frequency.
Meanwhile, its advanced semiconductor technology provides a wide range operation voltage,
from 1.8 V to 5.5 V, and working temperature between -40°C and 85°C at 32 MHz CPU
clock rate.

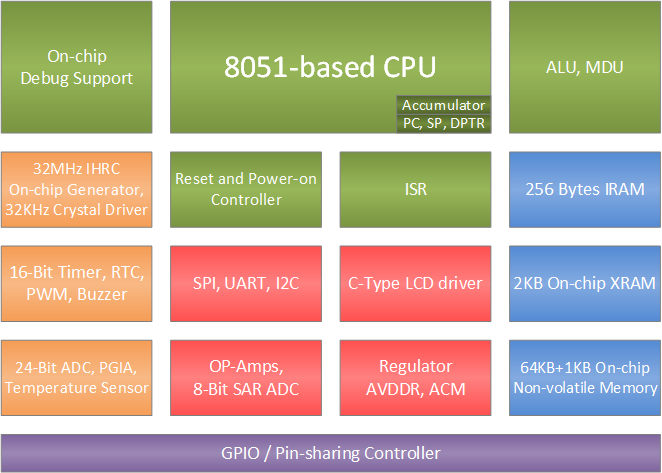

The microcontroller builds in a 64 KB flash memory (IROM), 1 KB data flash memory,
256 bytes internal RAM (IRAM) and 2 KB on-chip external RAM (XRAM). A hardware MDU
dramatically improves mathematical operations performance. Furthermore, a 6 input
channels/24-bit resolution ADC, One Programmable Gain Instrument Amplifier, 4*31 or
6*29 LCD driver (124~174 dots), One OP-Amps and 2 input channels/8-bit SAR ADC, one
Regulator (AVDDR and ACM), three 16-Bit Timer/Counter with Auto reload, PWM Output
function, one 8-Bit base Timer for RTC, Communication interfaces (UART, SPI, I2C)
to fit in the vast majority of consumer electronics, Blood Pressure, Thermometer Application
and Medical Measurement Applications.
