PKT_QFN24_05_4x4

  • Part Number

    PKT_QFN24_05_4x4

  • Spec.

    Leads: 24 pin
    Body size:4x4mm
    Pitch: 0.5mm

  • Package Type

    QFN 4x4 24 pin

  • PKT and Writer

    QFN24 SOCKET.png

    QFN24 4x4mm PKT on writer

  • IC and PKT

    IC-QFN24 SOCKET.png

    QFN24 4x4mm IC with PKT

  • How to use PKT with MPIII writer for Programming

    Step1

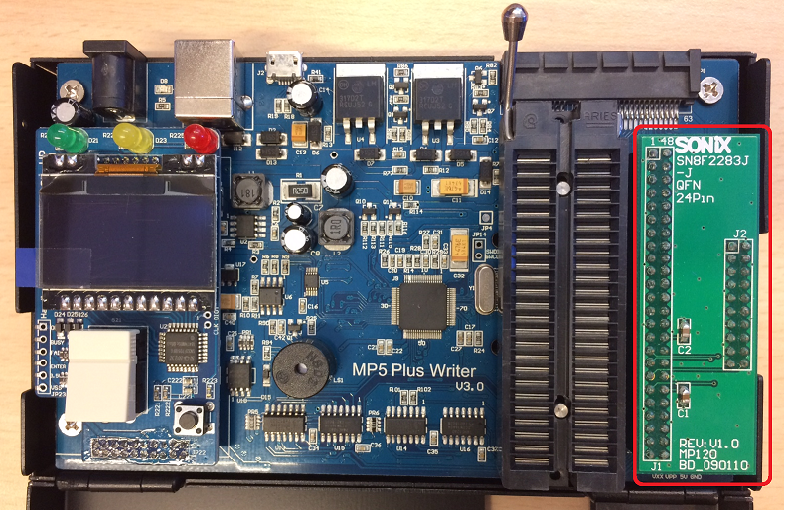

    Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.


    Step2

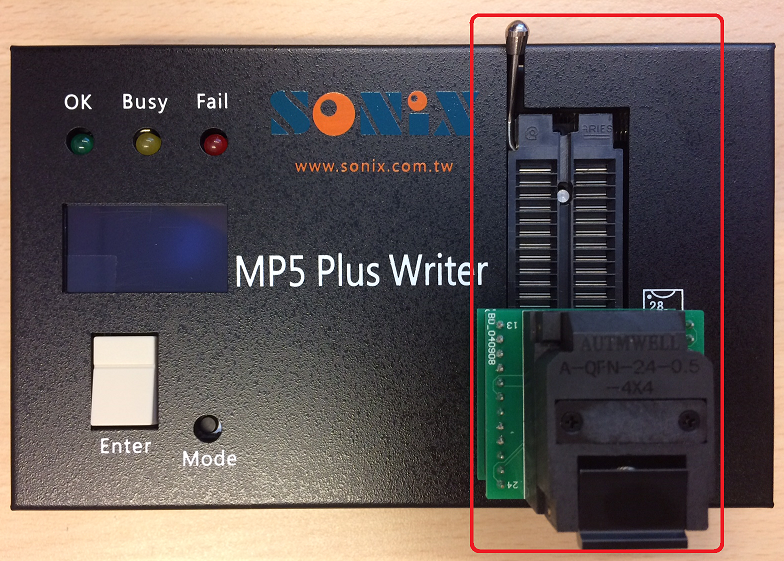

    Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
