PKT_LQFP100

  • Part Number

    PKT_LQFP100

  • Spec.

    Leads:100
    Body size: 16x16 mm
    Pitch: 0.5mm

  • Package Type

    LQFP 100 pin

  • PKT and Writer

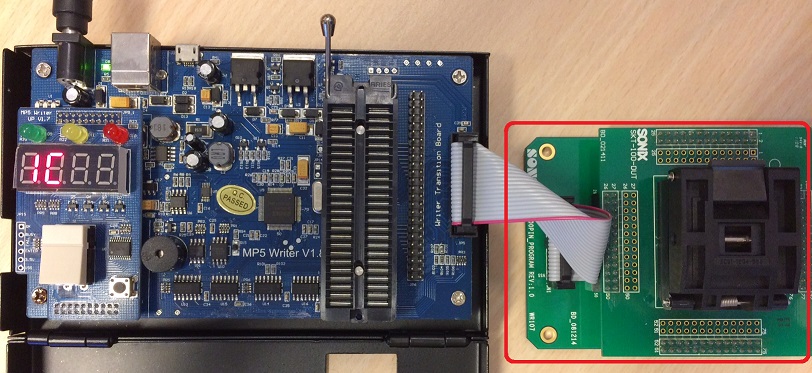

    LQFP100 16mmx16mm PKT on writer

  • IC and PKT

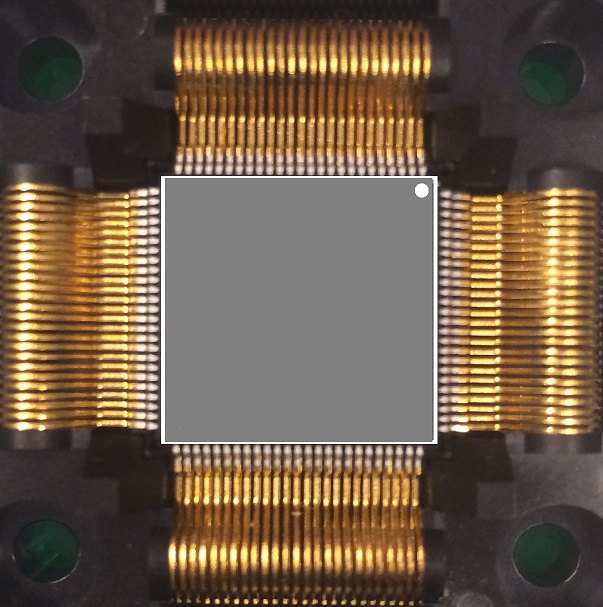

    LQFP100 16mmx16mm IC with PKT

  • How to use PKT with MPIII writer for Programming

    Step1

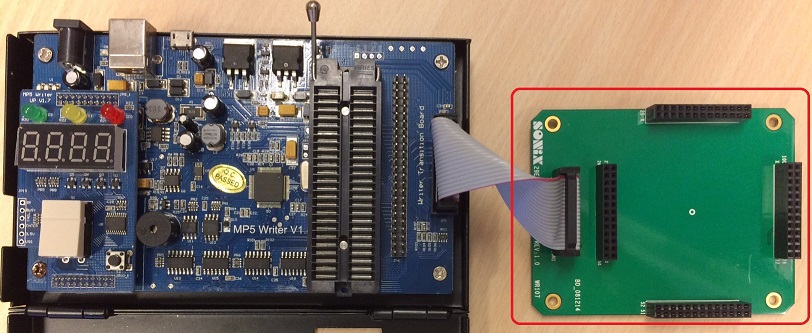

    Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.



    Step2

    Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
