PKT_TSSOP28

  • Part Number

    PKT_TSSOP28

  • Spec.

    Leads: 28 pin
    Body width: 4.4mm（170mil）
    Pitch: 0.635mm

  • Package Type

    SSOP 16~28 pin 170mil

  • PKT and Writer

    TSSOP28 SOCKET.PNG

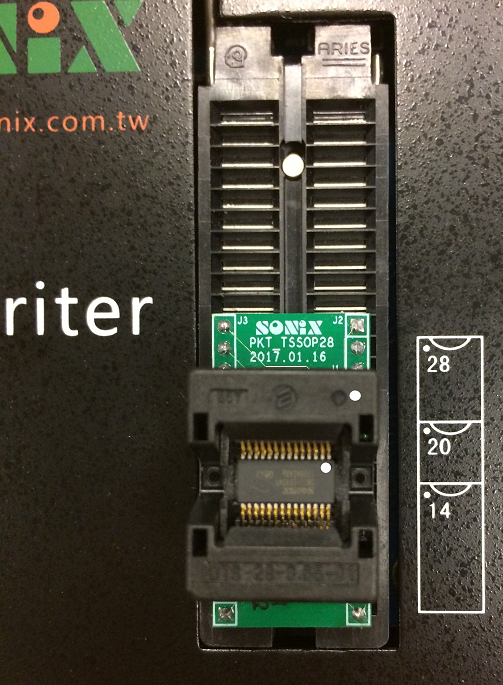

    SSOP28 170mil PKT on writer

  • IC and PKT

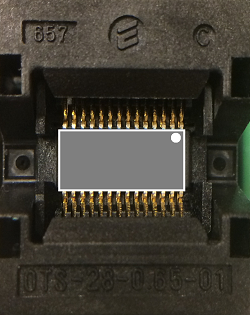

    SSOP28 170mil IC with PKT

  • How to use PKT with MPIII writer for Programming

    Step1

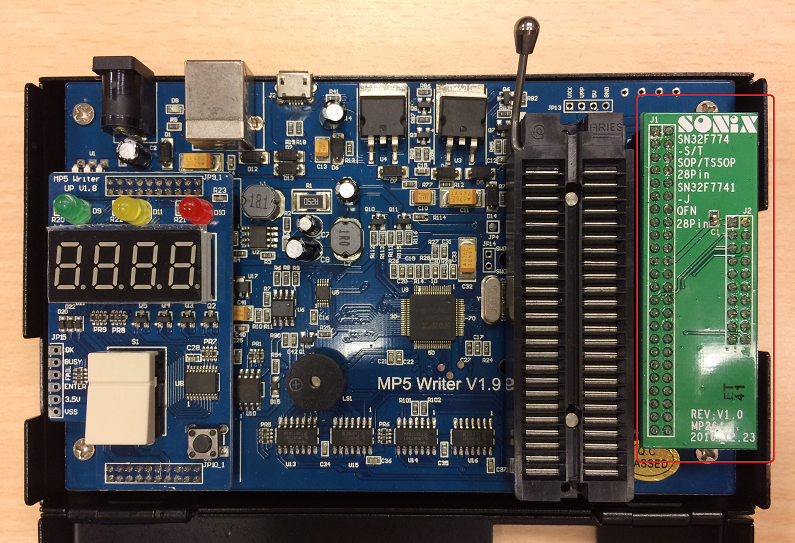

    Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.


    Step2

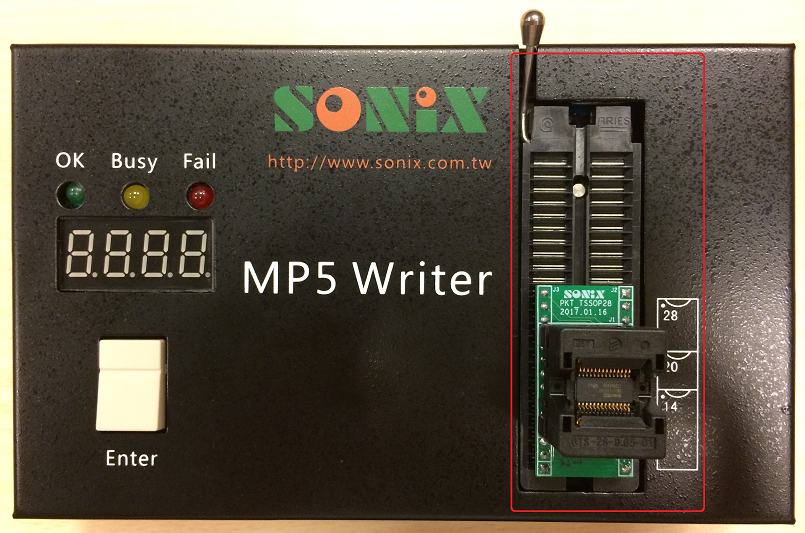

    Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
