PKT_SSOP56_300
PKT_SSOP56_300
-
Part Number
-
Spec.
Leads:56
Body width: 7.6mm (300mil)
Pitch: 0.635mm -
Package Type
SSOP 48pin 300mil
-
PKT and Writer
MP5+SSOP56 SOCKET_1.jpg

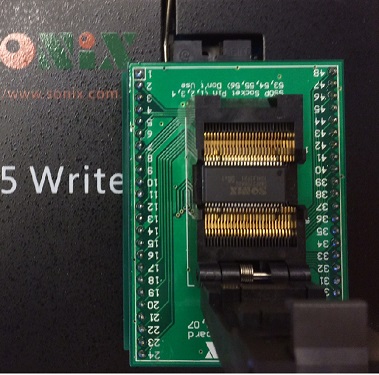

SSOP56 300mil PKT on writer
-
IC and PKT

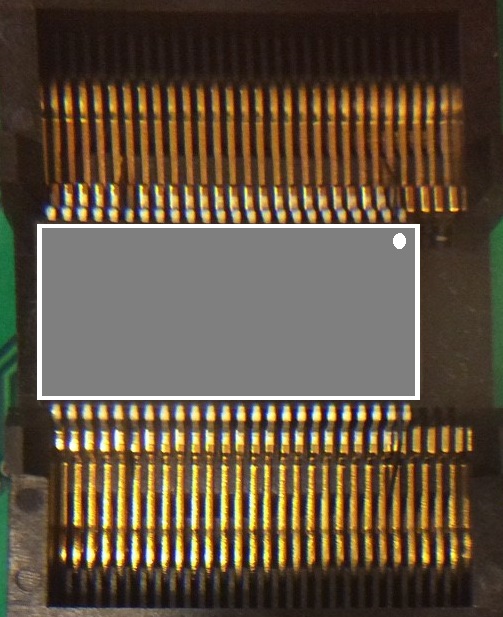

SSOP56 300mil IC with PKT
-
How to use PKT with MPIII writer for Programming
Step1

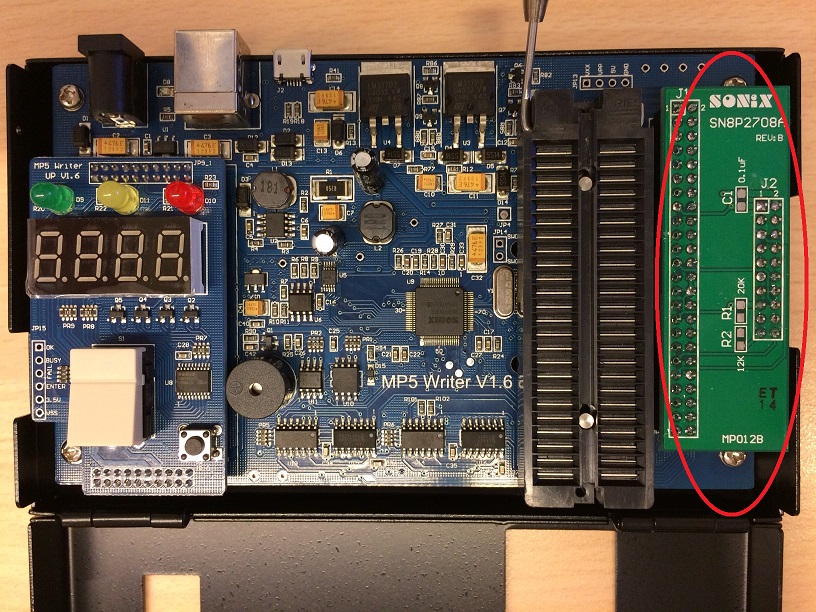

Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.
Step2

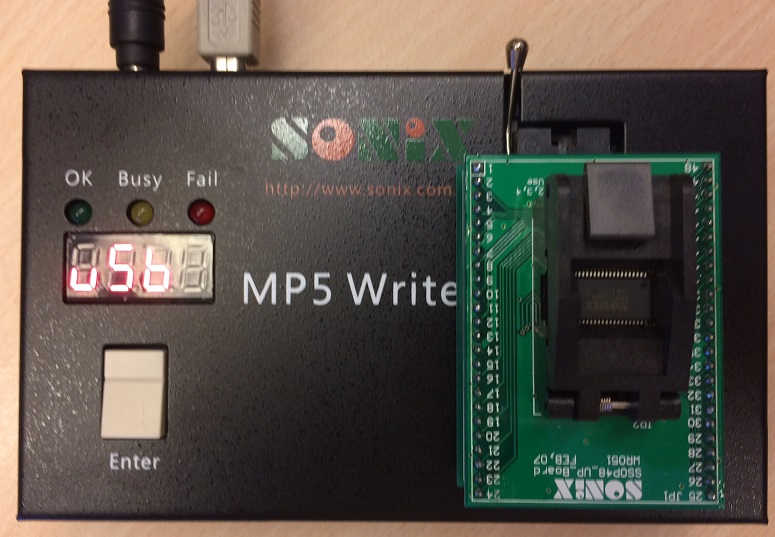

Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
