PKT_LQFP32
PKT_LQFP32
-
Part Number
-
Spec.
Leads: 32
Body size: 7x7 mm
Pitch: 0.8mm -
Package Type
LQFP 32 pin
-
PKT and Writer

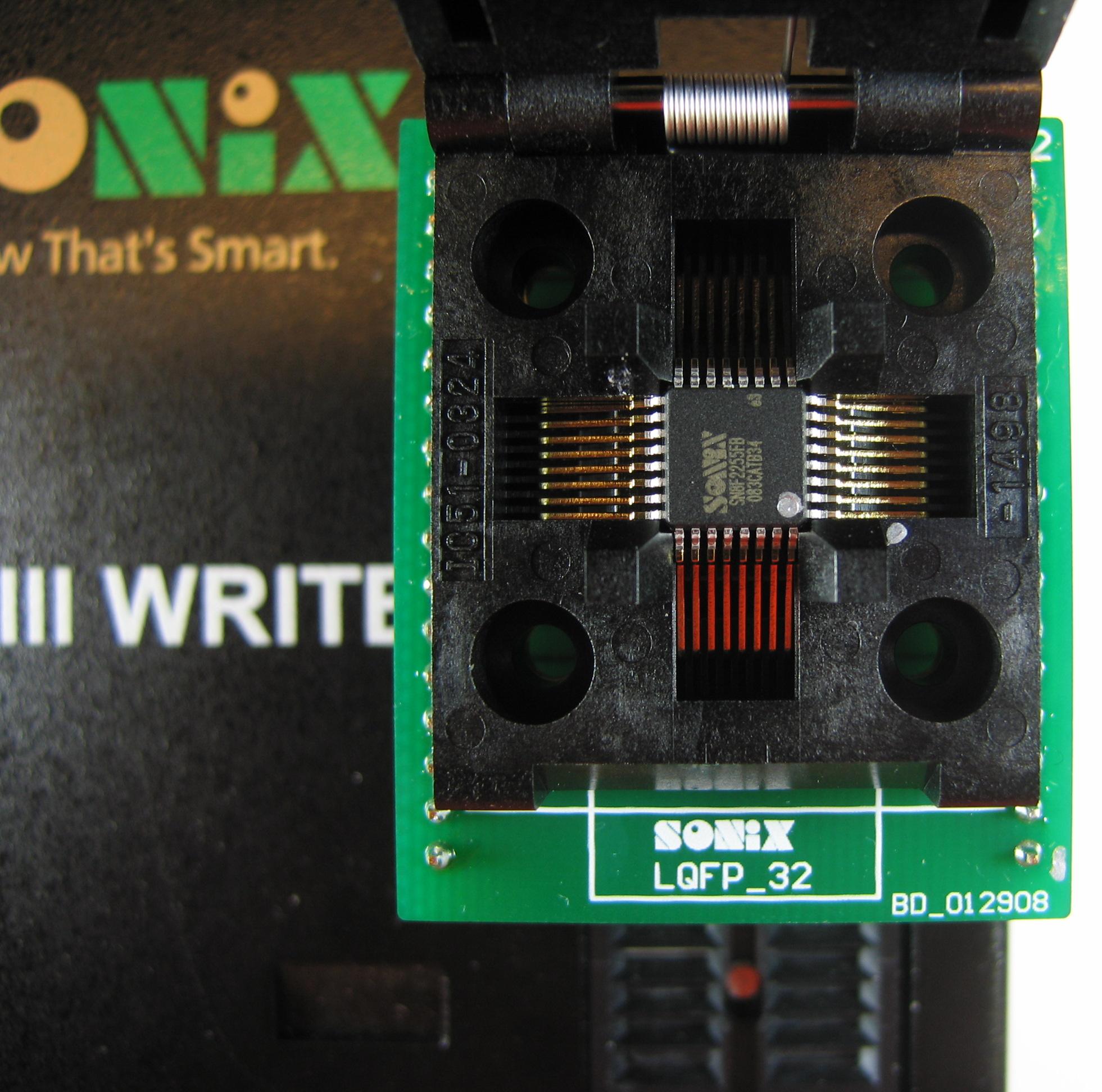

LQFP32 7x7mm PKT on writer
-
IC and PKT
LQFP32 IC with PKT
-
How to use PKT with MPIII writer for Programming
Step1

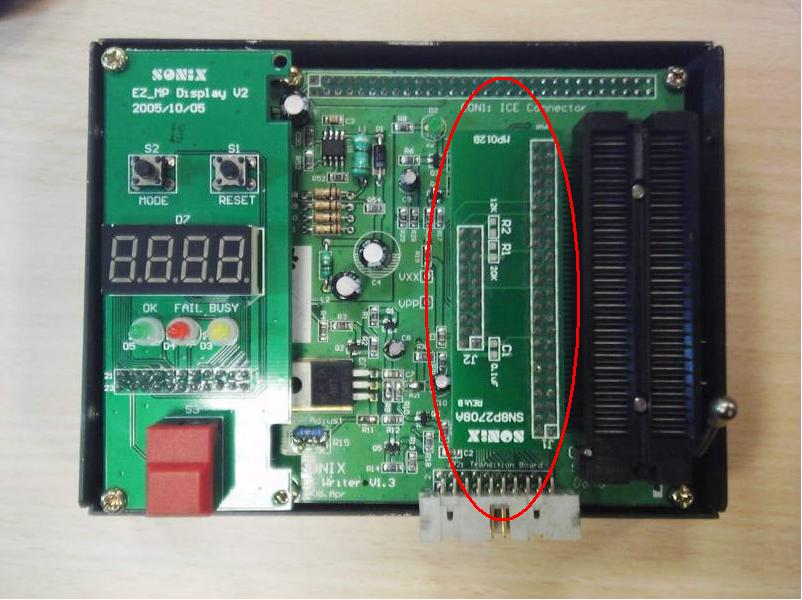

Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.
Step2

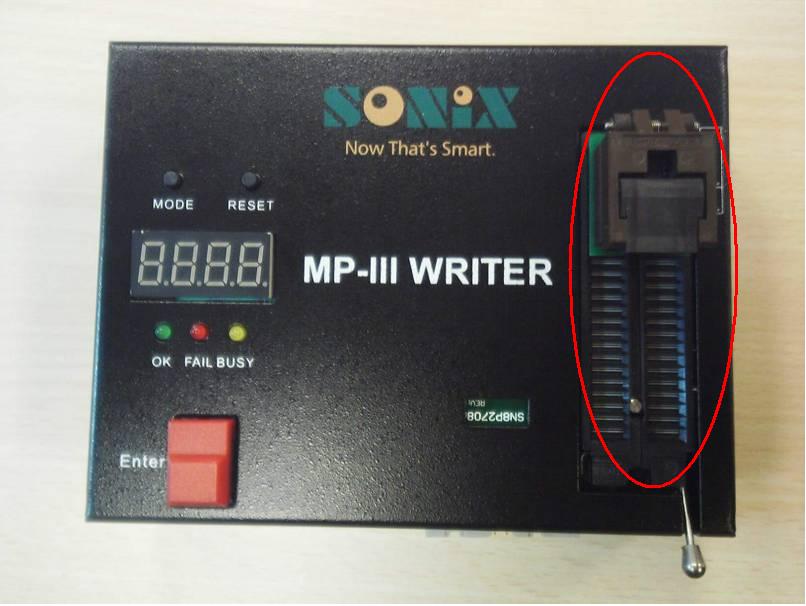

Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
