PKT_LQFP48

  • Part Number

    PKT_LQFP48

  • Spec.

    Leads:48
    Body size: 7x7 mm
    Pitch: 0.5mm

  • Package Type

    LQFP 48 pin

  • PKT and Writer

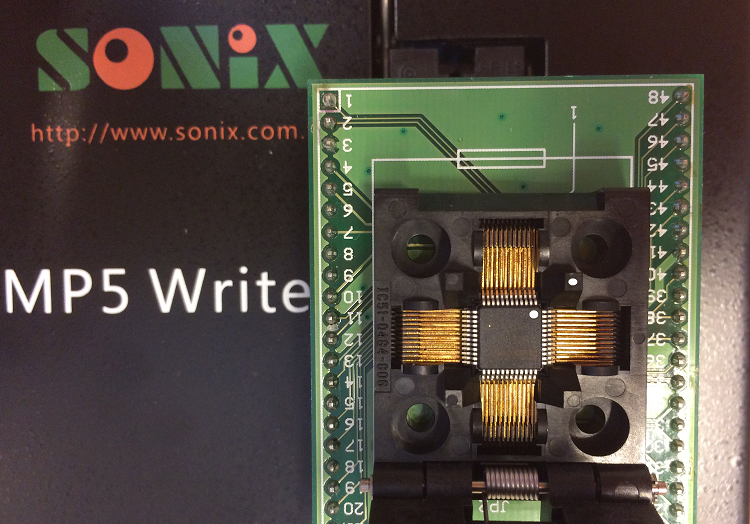

    MP5+LQFP48 SOCKET.PNG

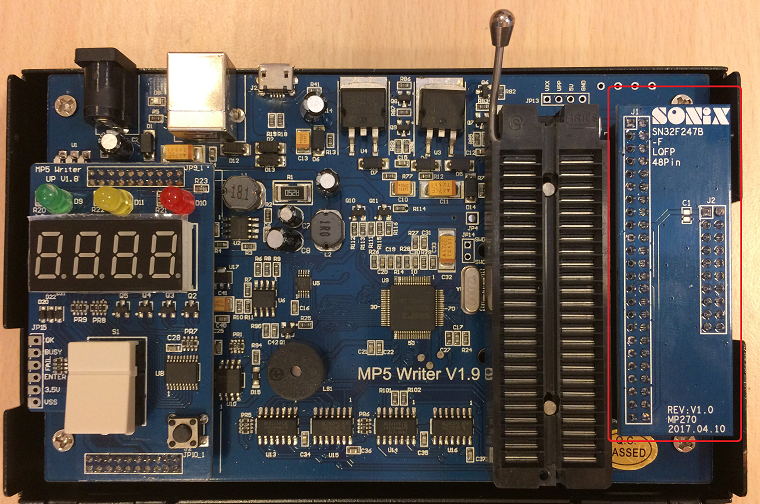

    LQFP48 7x7mm PKT on writer

  • IC and PKT


    LQFP48 IC with PKT

  • How to use PKT with MPIII writer for Programming

    Step1

    Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.


    Step2

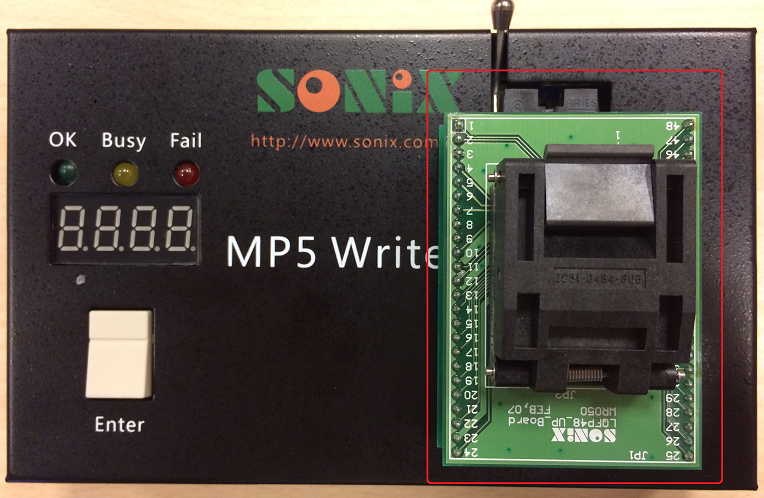

    Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
