PKT_LQFP64_05_10x10
PKT_LQFP64_05_10x10
-
Part Number
-
Spec.
Leads:64
Body size: 10x10 mm
Pitch: 0.5mm -
Package Type
LQFP 64 pin
-
PKT and Writer
-
IC and PKT
-
How to use PKT with MPIII writer for Programming
Step1

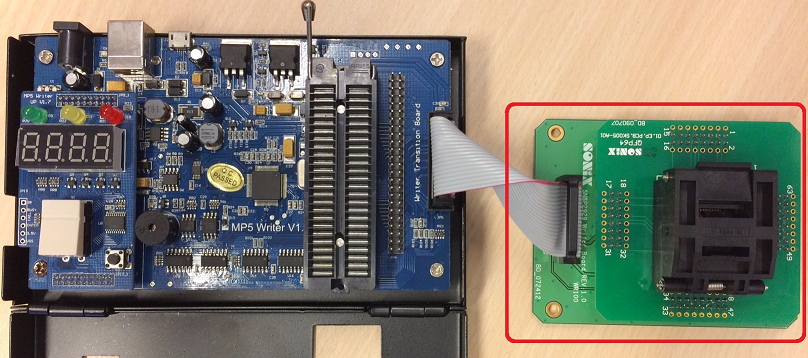

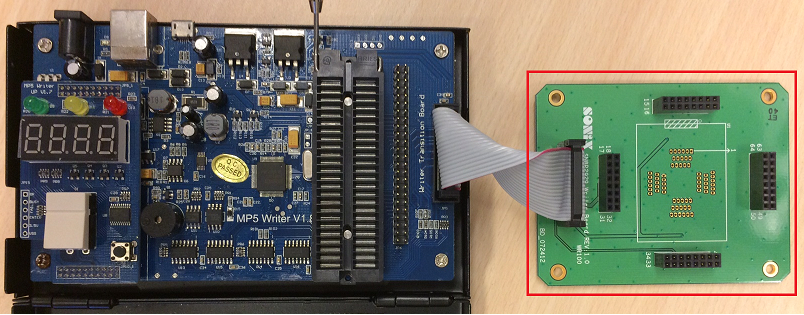

Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.
Step2

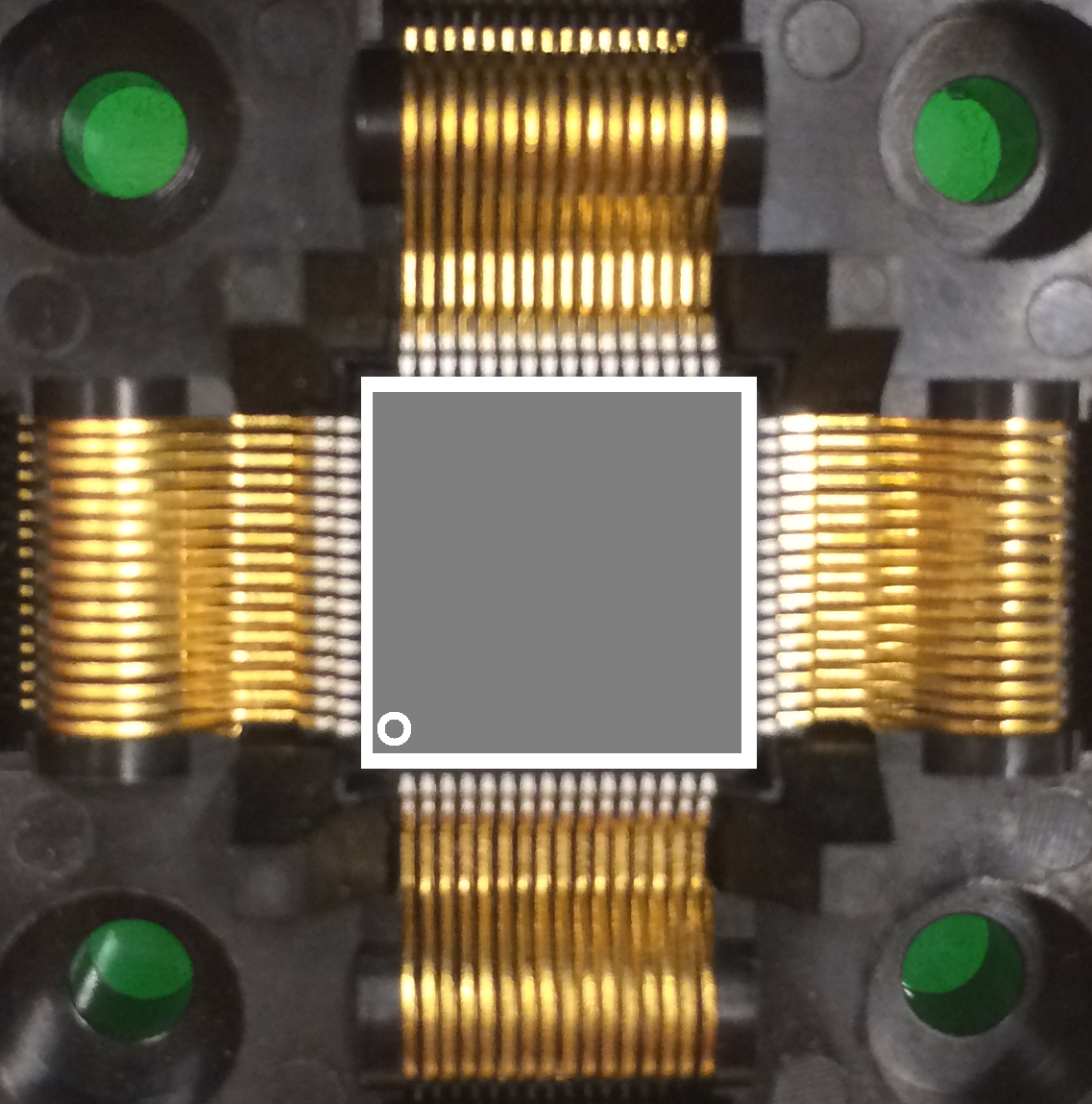

Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
