PKT_LQFP80

  • Part Number

    PKT_LQFP80

  • Spec.

    Leads:80
    Body size: 10x10 mm
    Pitch: 0.4mm

  • Package Type

    LQFP 80 pin

  • PKT and Writer

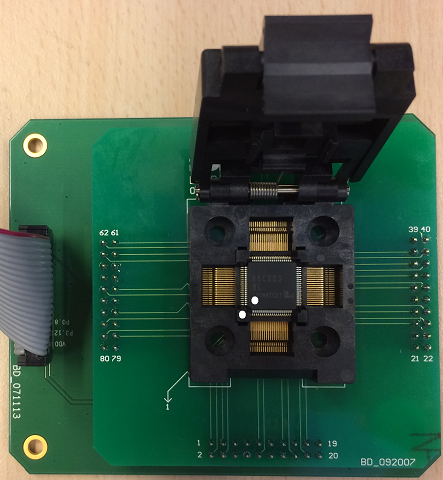

    LQFP80 PKT on writer

  • IC and PKT

    SOCKET LQFP80.PNG

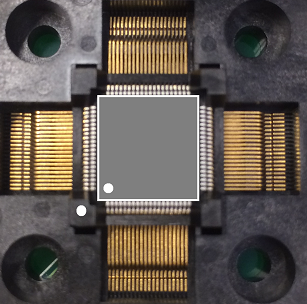

    LQFP80 IC with PKT

  • How to use PKT with MPIII writer for Programming

    Step1

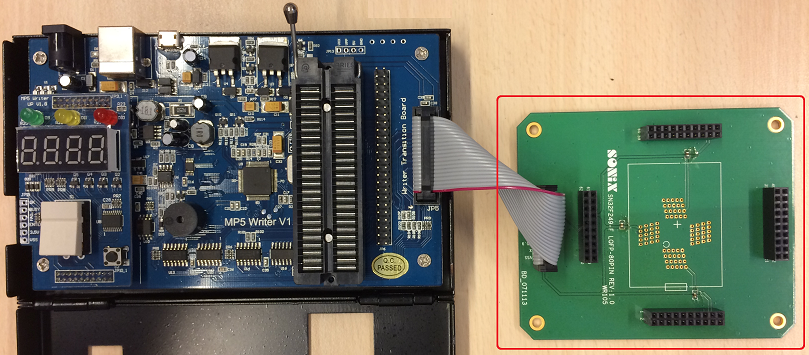

    Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.


    Step2

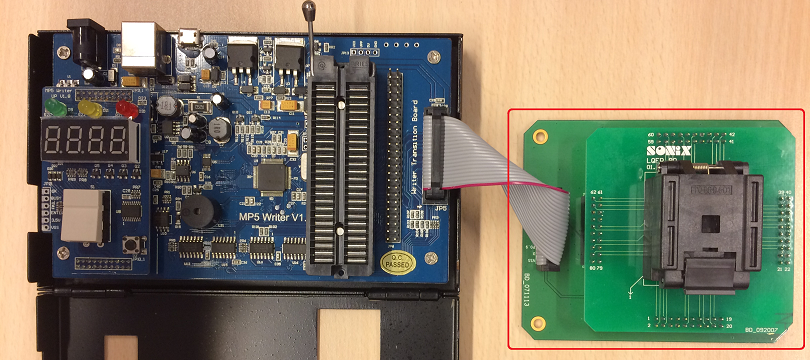

    Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
