PKT_MSOP10

  • Part Number

    PKT_MSOP10

  • Spec.

    Leads: 10 pin
    Body width: 3mm（118mil）
    Pitch: 0.5mm

  • Package Type

    MSOP 10 pin 118mil

  • PKT and Writer

    MSOP10 SOCKET.png

    MSOP10 118mil PKT on writer

  • IC and PKT


    QFN24 4x4mm IC with PKT

  • How to use PKT with MPIII writer for Programming

    Step1

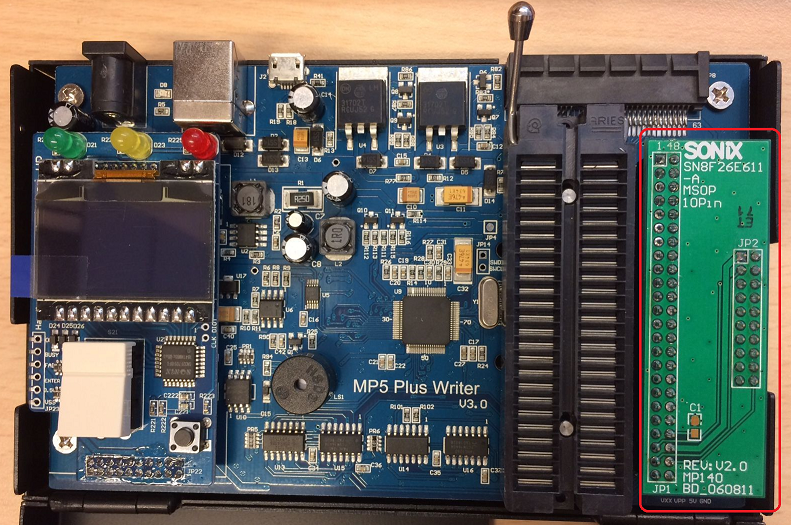

    Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.


    Step2

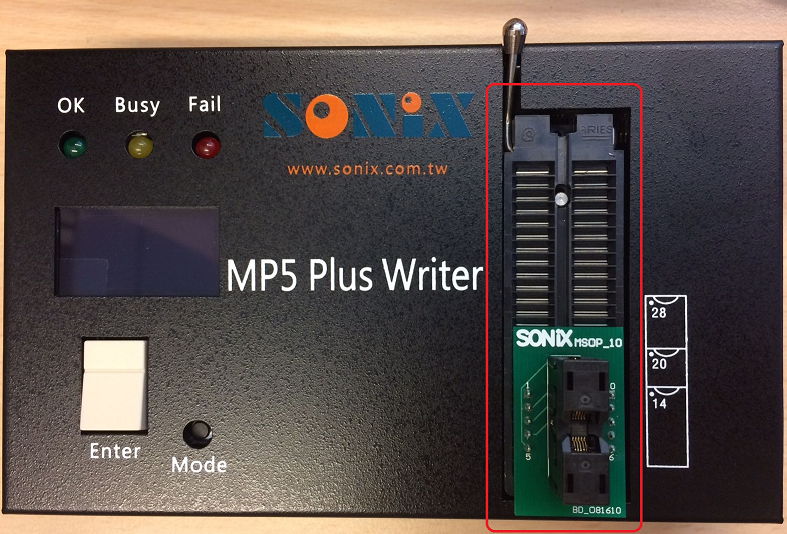

    Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
