PKT_QFN16_05_3x3
PKT_QFN16_05_3x3
-
Part Number
-
Spec.
Leads: 16 pin
Body size:3x 3mm
Pitch: 0.5mm -
Package Type
QFN 3x3 16 pin
-

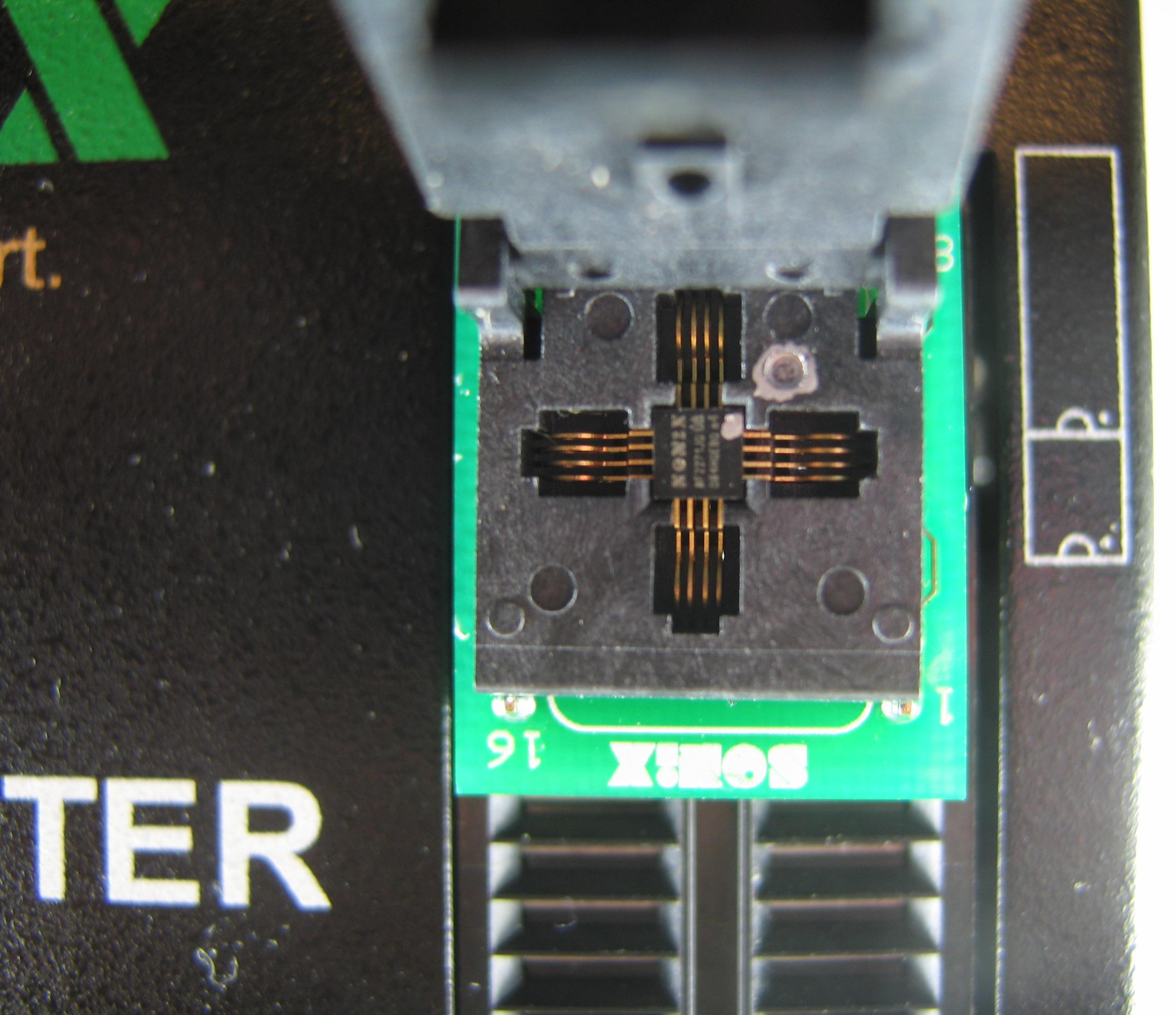

PKT and Writer
QFN16 3x3mm PKT on writer
-

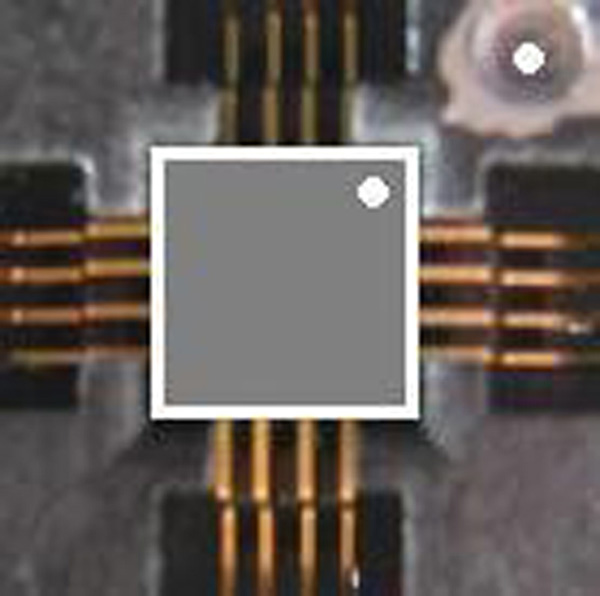

IC and PKT
QFN16 3x3mm IC with PKT
-
How to use PKT with MPIII writer for Programming
Step1

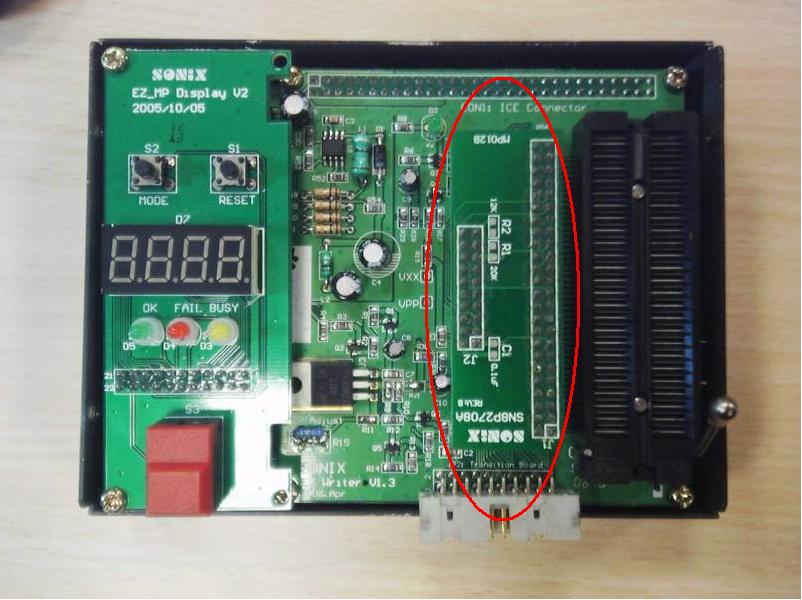

Open the upper cover of writer and insert the writer transitionboard of corresponding IC as shown in below picture. For detail information,please refer to MPIII Write use manual.
Step2

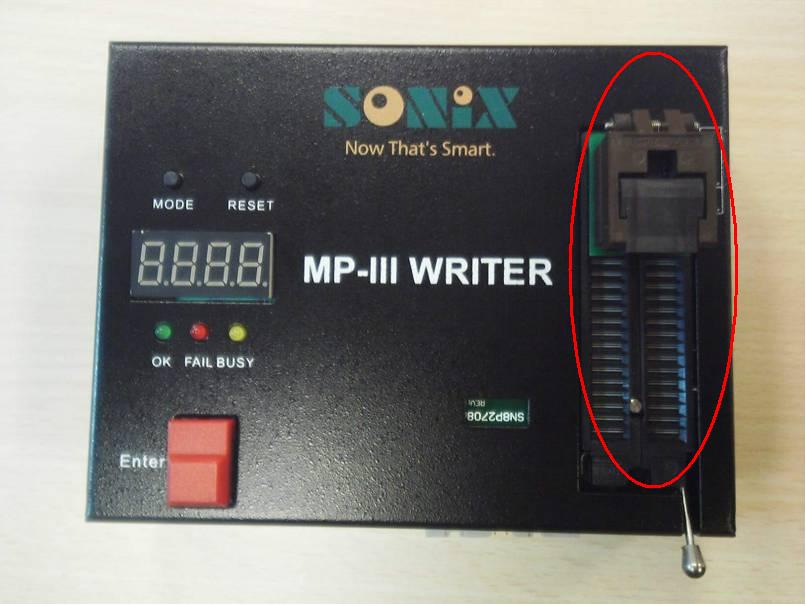

Lock upper cover of writer and putPKT to Writer‘s Text tool as show in below picture.
