PKT_SSOP28_150
PKT_SSOP28_150
-
Part Number
-
Spec.
Leads: 28 pin
Body width: 3.9mm（150mil）
Pitch: 0.635mm -
Package Type
SSOP 16~28 pin 150mil
-

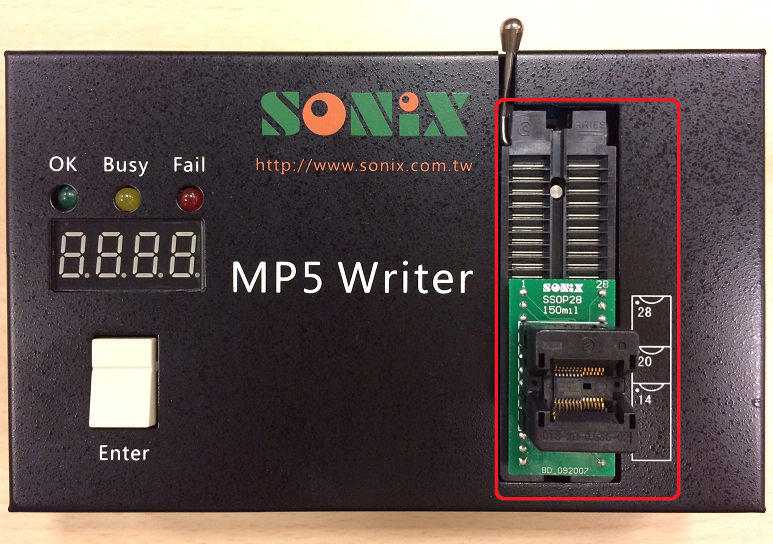

PKT and Writer
SSOP28 150mil PKT on writer
-

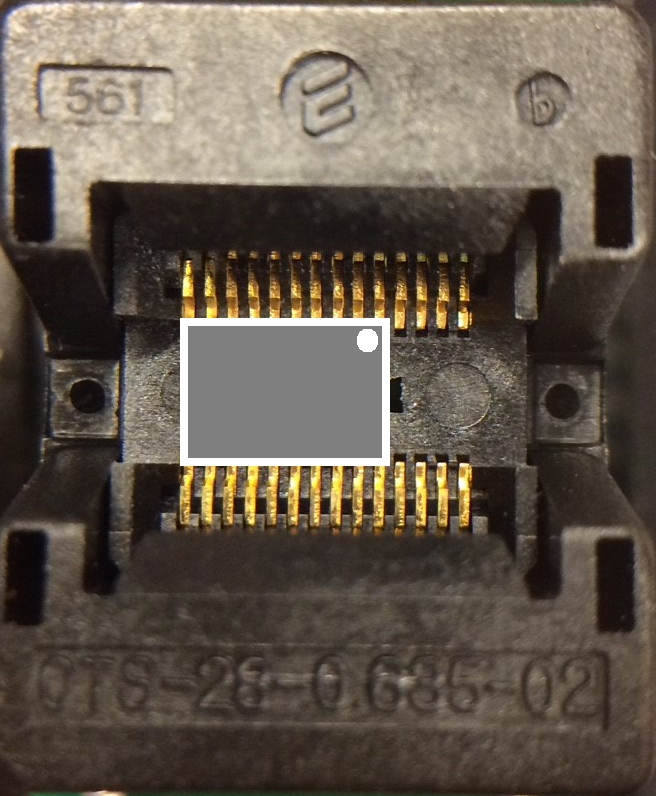

IC and PKT
SSOP28 150mil IC with PKT
-
How to use PKT with MPIII writer for Programming
Step1

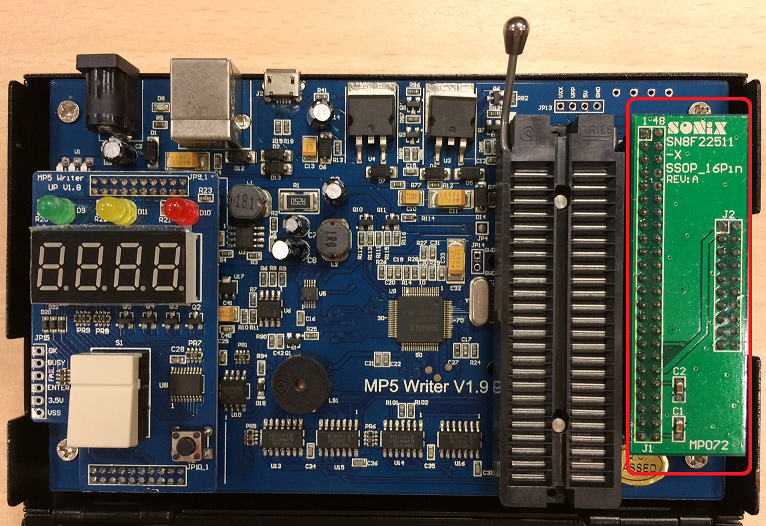

Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.
Step2

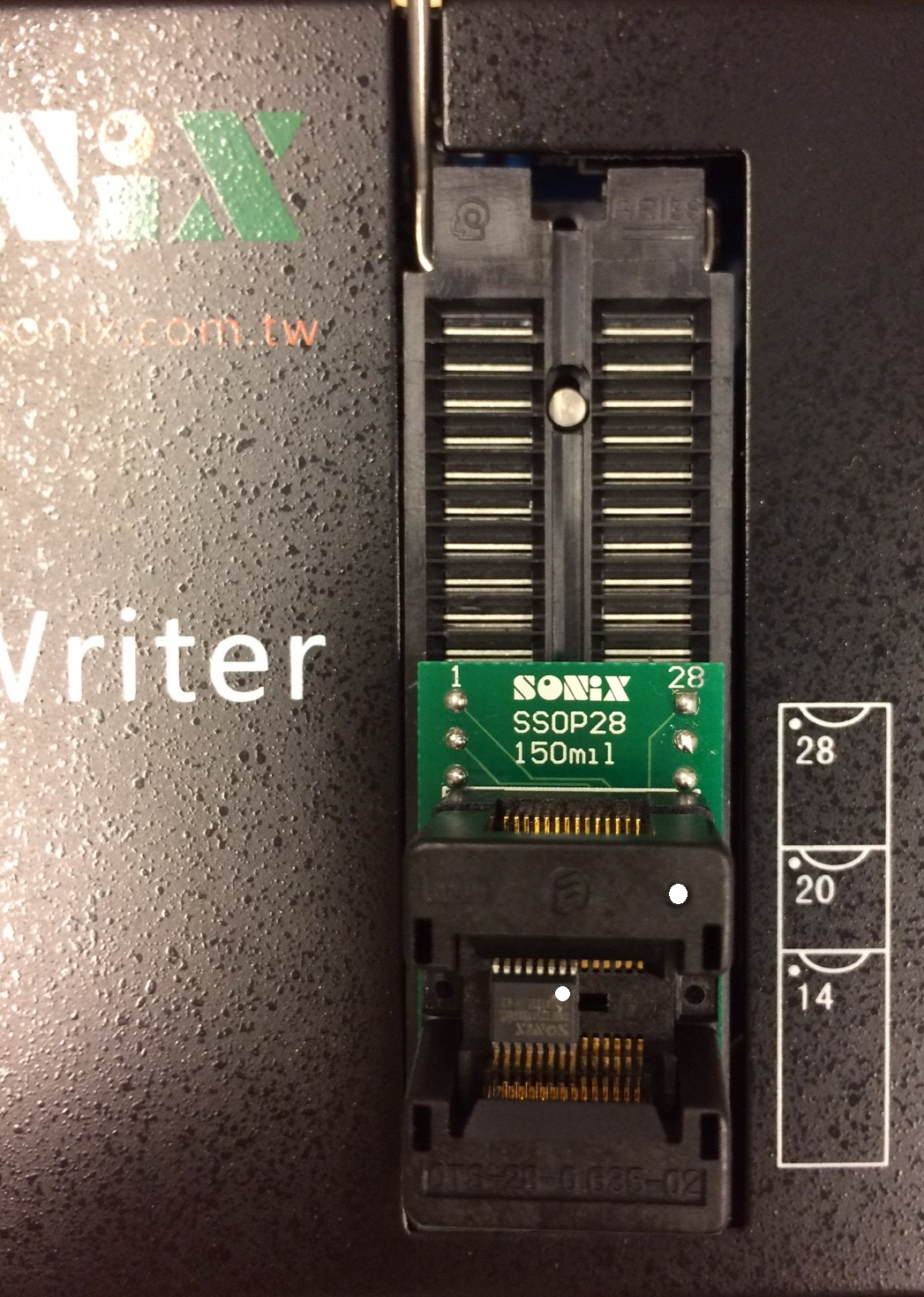

Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
