PKT_SOP28_300
PKT_SOP28_300
-
Part Number
-
Spec.
Leads: 28 pin
Body width: 7.6mm (300mil)
Pitch: 1.27mm -
Package Type
SOP 18~28 pin 300mil
-
PKT and Writer

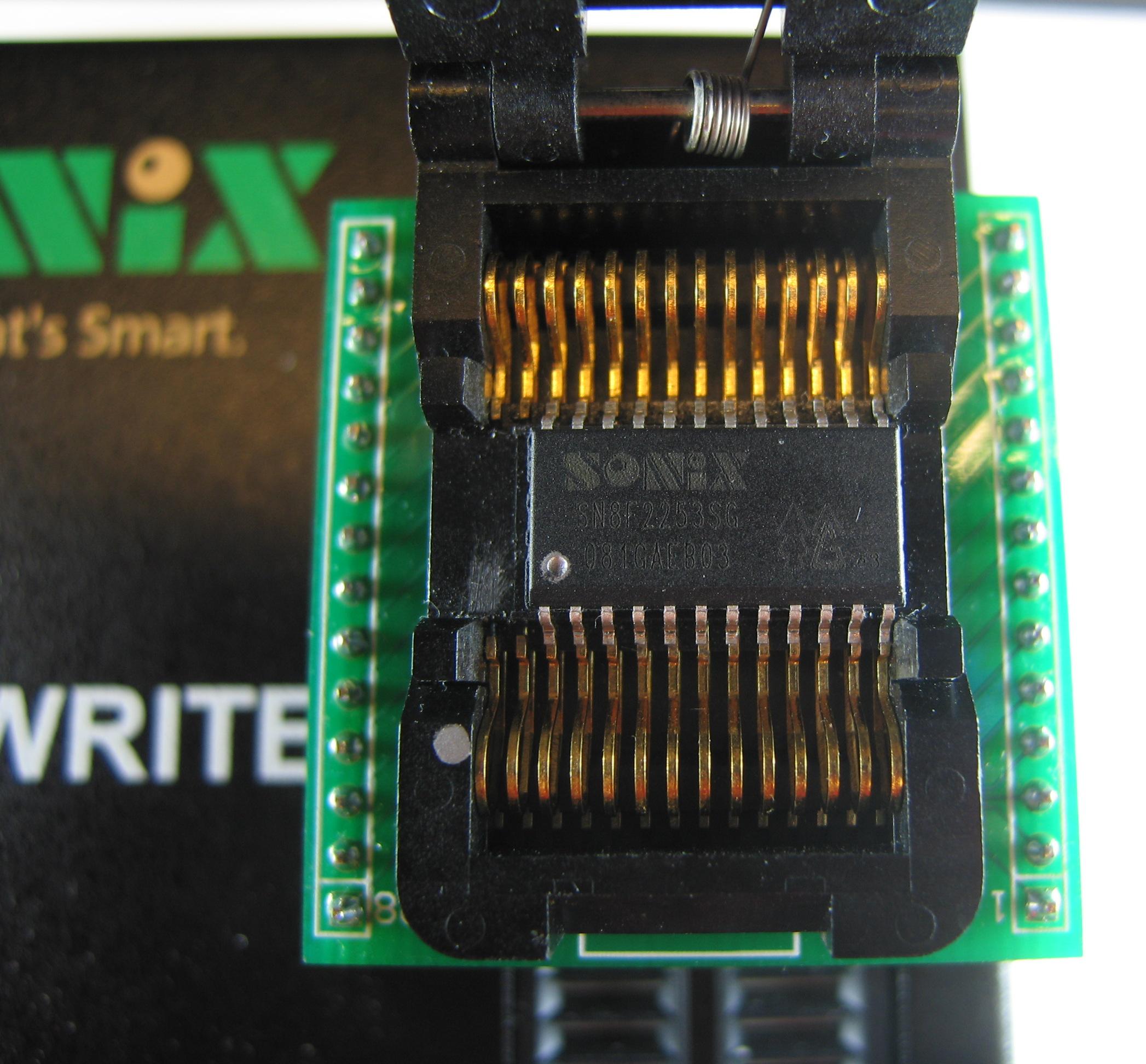

SOP28 300mil PKT on writer
-
IC and PKT

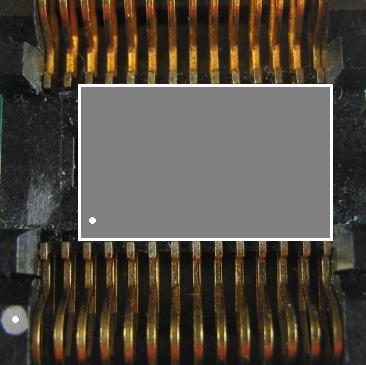

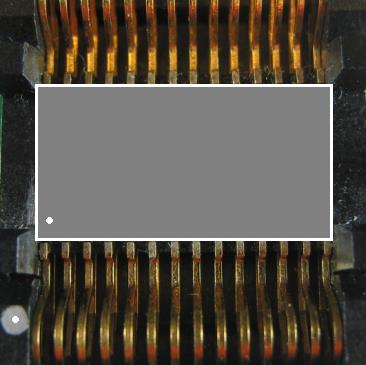

SOP28_20PIN.JPG SOP28_28PIN.JPG SOP28_24PIN.JPG
SOP28 300mil IC with PKT
-
How to use PKT with MPIII writer for Programming
Step1

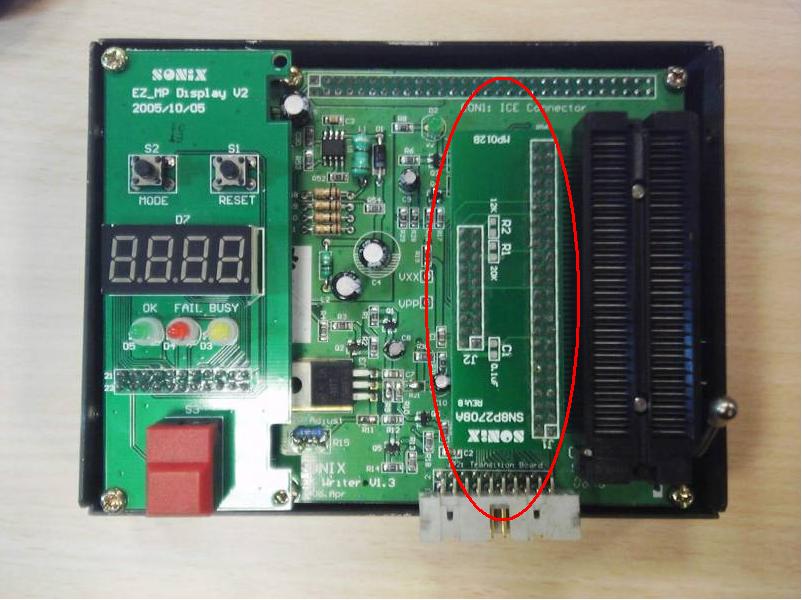

Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.
Step2

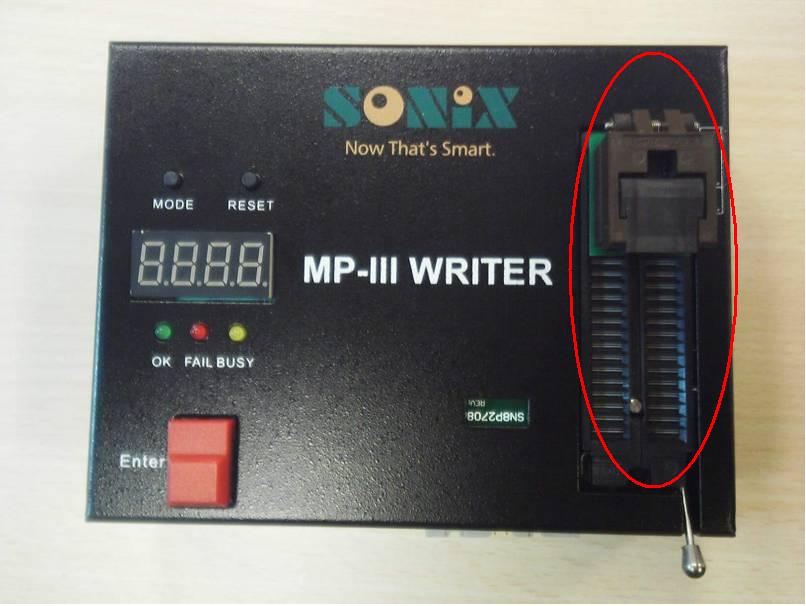

Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
