PKT_SOP16_150

  • Part Number

    PKT_SOP16_150

  • Spec.

    Leads: 16 pin
    Body width: 3.9mm（150mil）
    Pitch: 0.5mm

  • Package Type

    SOP 8~16 pin 150mil

  • PKT and Writer


    SOP16 150mil PKT on writer

  • IC and PKT


    SOP16 150mil IC with PKT

  • How to use PKT with MPIII writer for Programming

    Step1

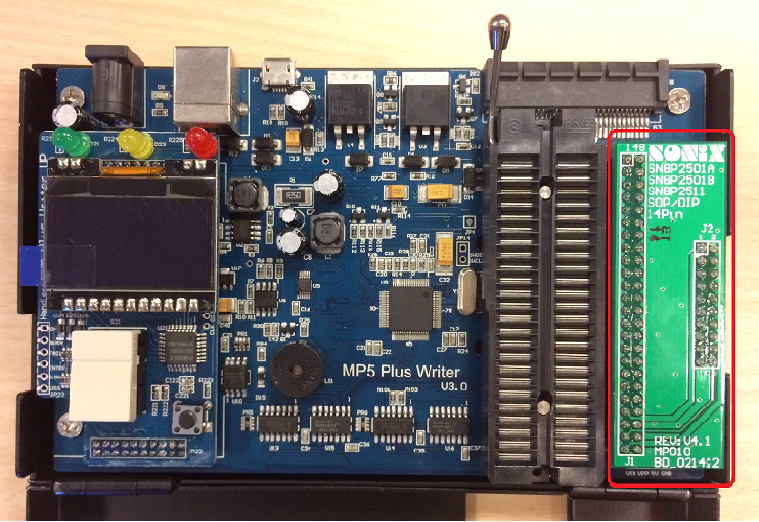

    Open the upper cover of writer and insert the writer transitionboard of corresponding IC as shown in below picture. For detail information,please refer to MPIII Write use manual.



    Step2

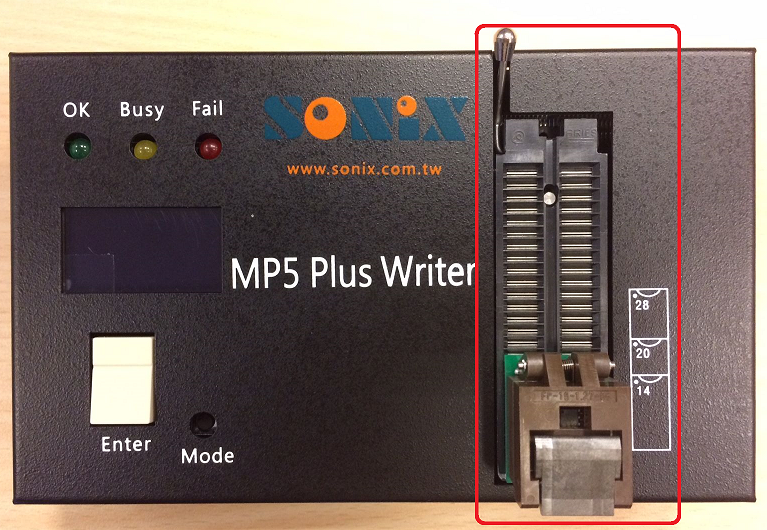

    Lock upper cover of writer and putPKT to Writer‘s Text tool as show in below picture.
