PKT_QFP44

  • Part Number

    PKT_QFP44

  • Spec.

    Leads:44
    Body size: 10x10 mm
    Pitch: 0.8mm

  • Package Type

    QFP 44 pin

  • PKT and Writer

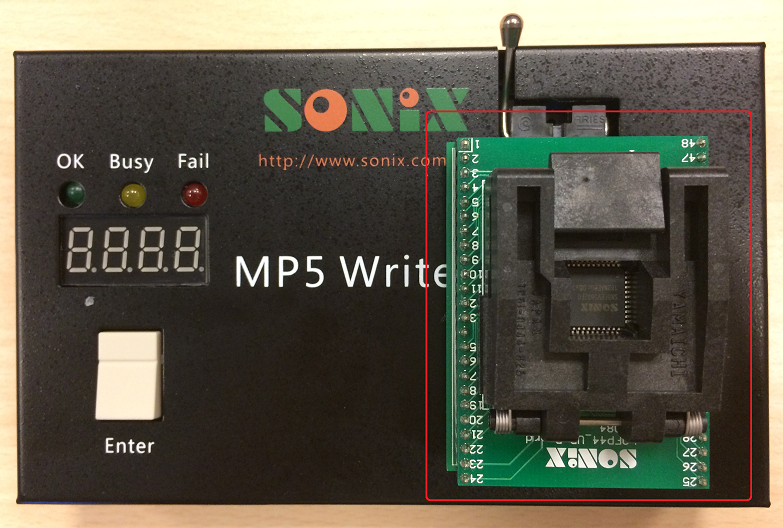

    QFP44 10x10mm PKTon writer

  • IC and PKT


    QFP44 IC with PKT

  • How to use PKT with MPIII writer for Programming

    Step1

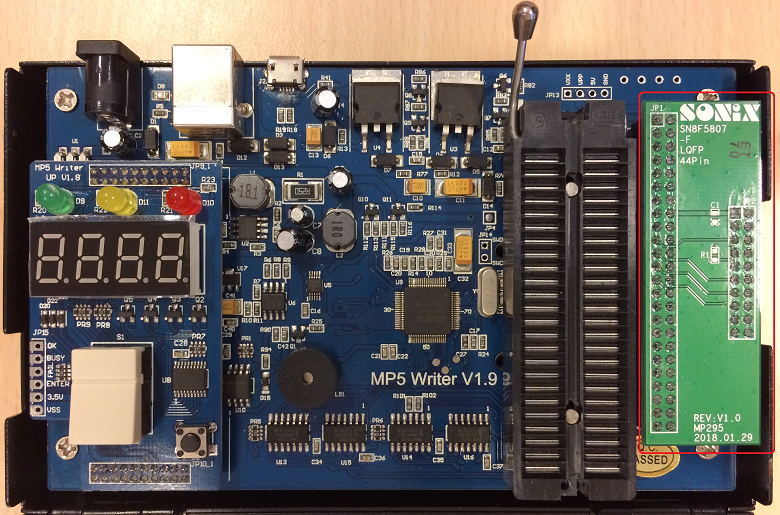

    Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.


    Step2

    Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
