PKT_QFN46
PKT_QFN46
-
Part Number
-
Spec.
Leads:46
Body size: 6.5x4.5 mm
Pitch: 0.4mm -
Package Type
QFN 46 pin
-
PKT and Writer
QFN46 6.5x4.5mm PKT on writer
-
IC and PKT
QFN46 IC with PKT
-
How to use PKT with MPIII writer for Programming
Step1

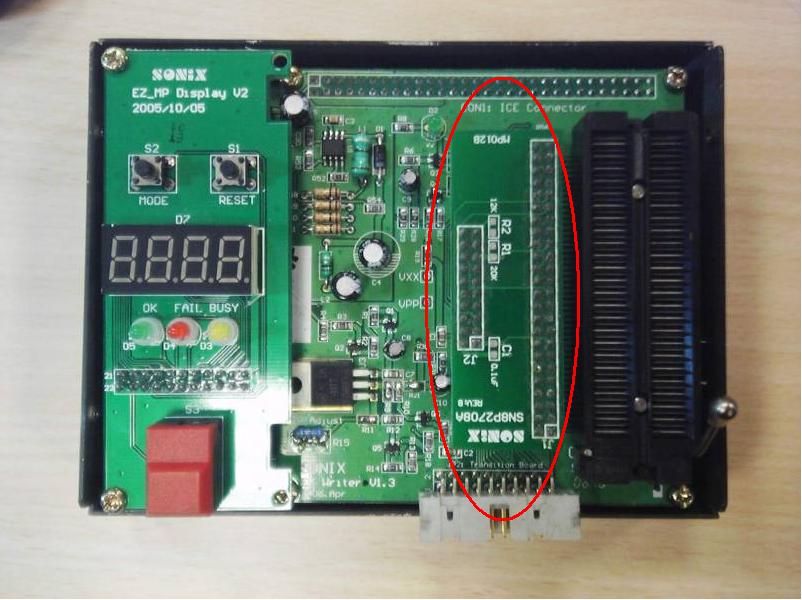

Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.
Step2

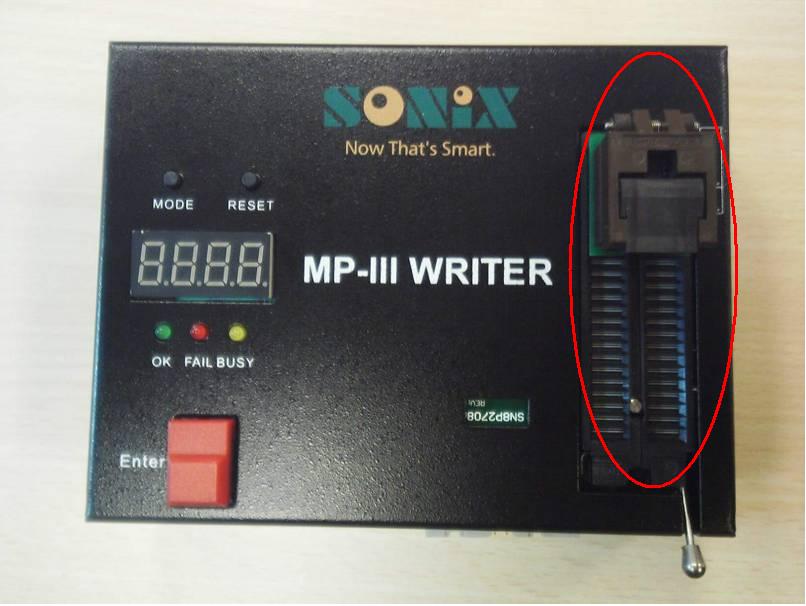

Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
