PKT_QFN32_05_5x5
PKT_QFN32_05_5x5
-
Part Number
-
Spec.
Leads: 32 pin
Body size: 5x5mm
Pitch: 0.5mm -
Package Type
QFN 5x5 32 pin
-
PKT and Writer
mp5+qfn32 socket.png

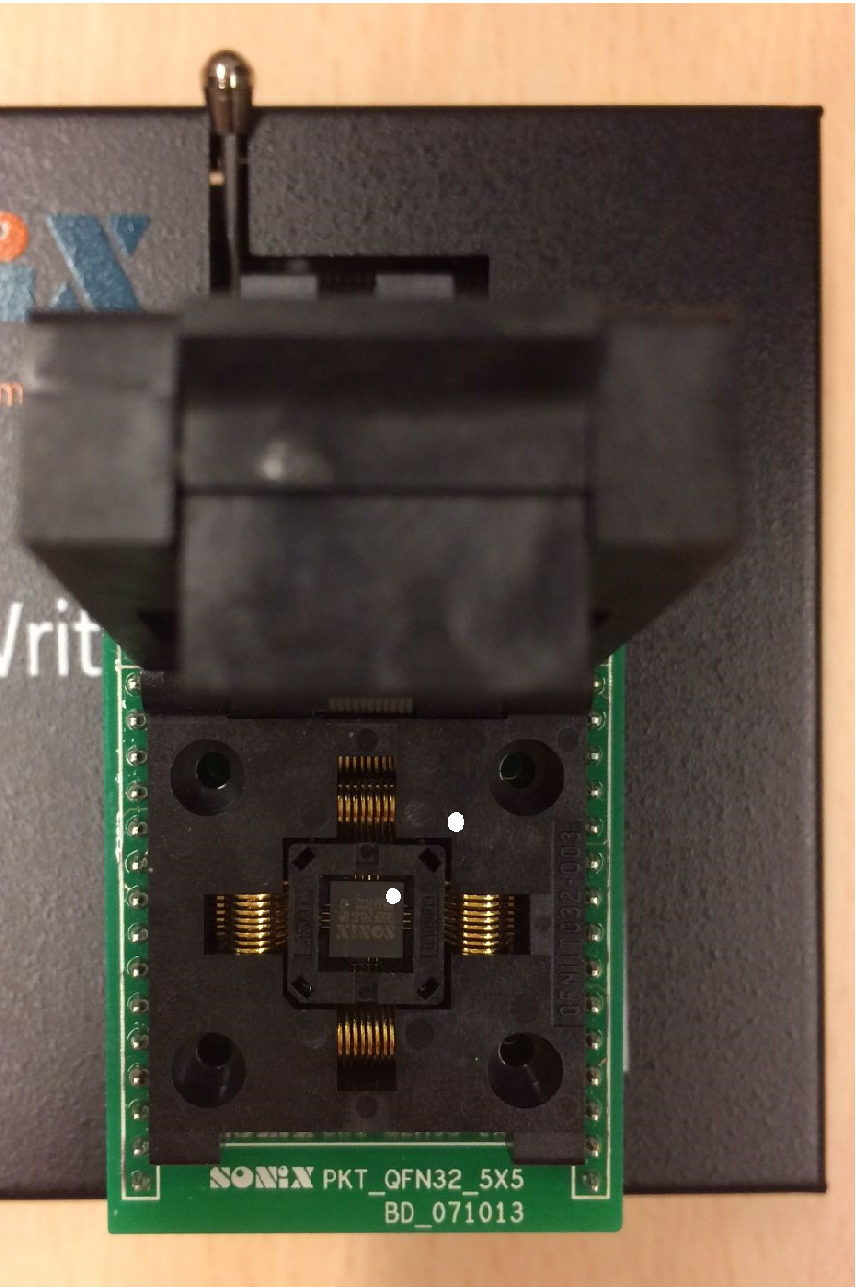

QFN32 5x5mm PKT on writer
-
IC and PKT
IC-QFN32 5X5.png

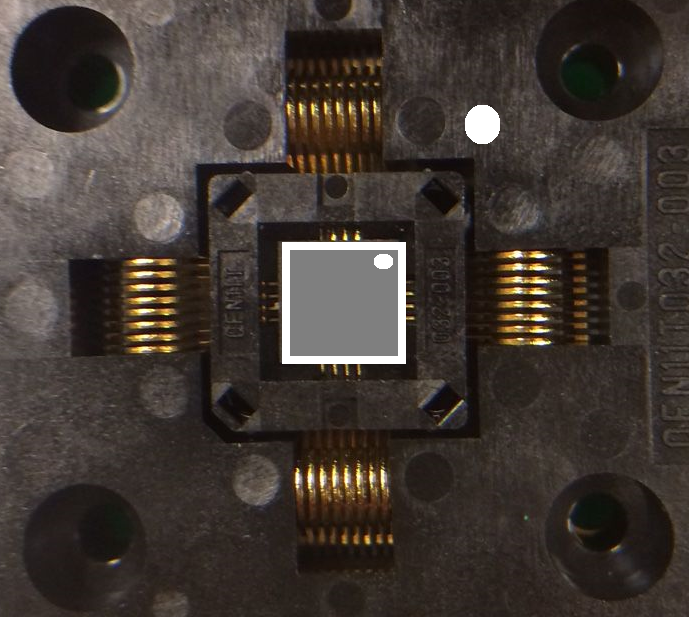

QFN32 5x5mm IC with PKT
-
How to use PKT with MPIII writer for Programming
Step1

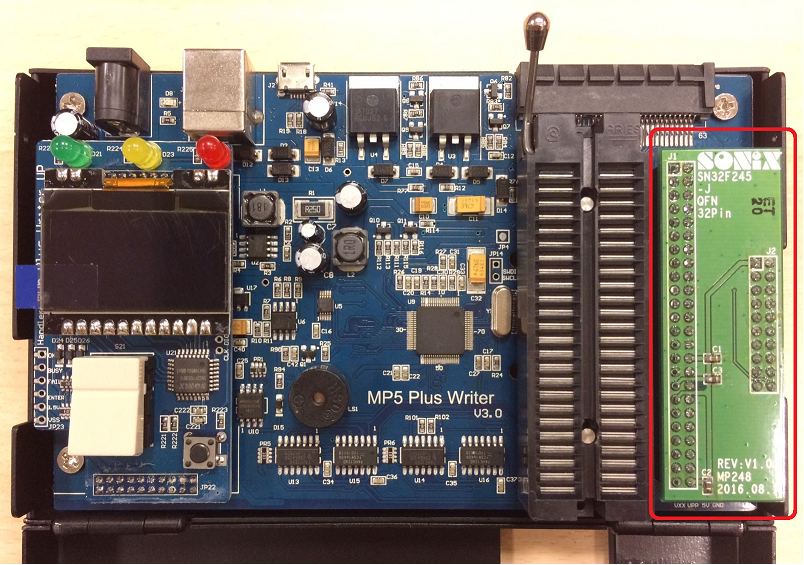

Open the upper cover of writer and insert the writer transition board of corresponding IC as shown in below picture. For detail information, please refer to MPIII Write use manual.
Step2

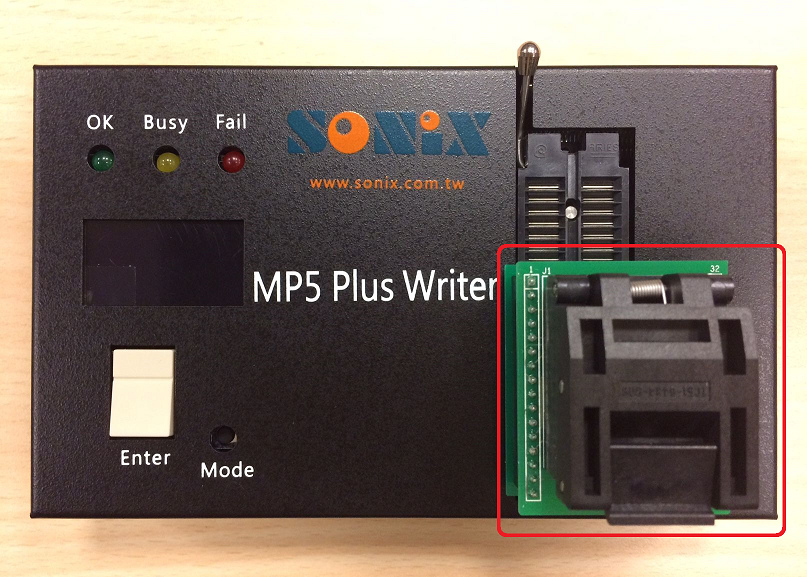

Lock upper cover of writer and put PKT to Writer‘s Text tool as show in below picture.
