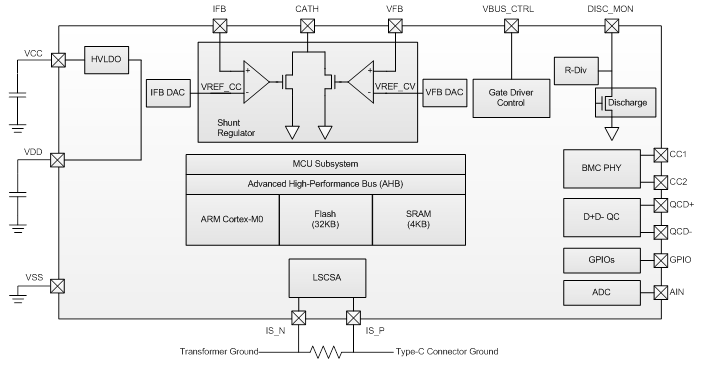

The SN32F600 Series is a highly integrated USB Type-C port controller that complies
with the latest USB Type-C and Power Delivery (PD) standards. With Sonix’s proprietary
M0 technology, the SN32F600 Series consists of a 32-bit ARM Cortex-M0 processor, a
32KB on-chip flash program memory, a complete Type-C USB-PD transceiver, an integrated
feedback control circuit for voltage (VBUS) regulation, and all termination resistors
required for a Type-C port. Featuring multiple I/Os, well-integrated BOM, and system-level
ESD protection, the SN32F600 Series is well-suited for power adapter applications.
