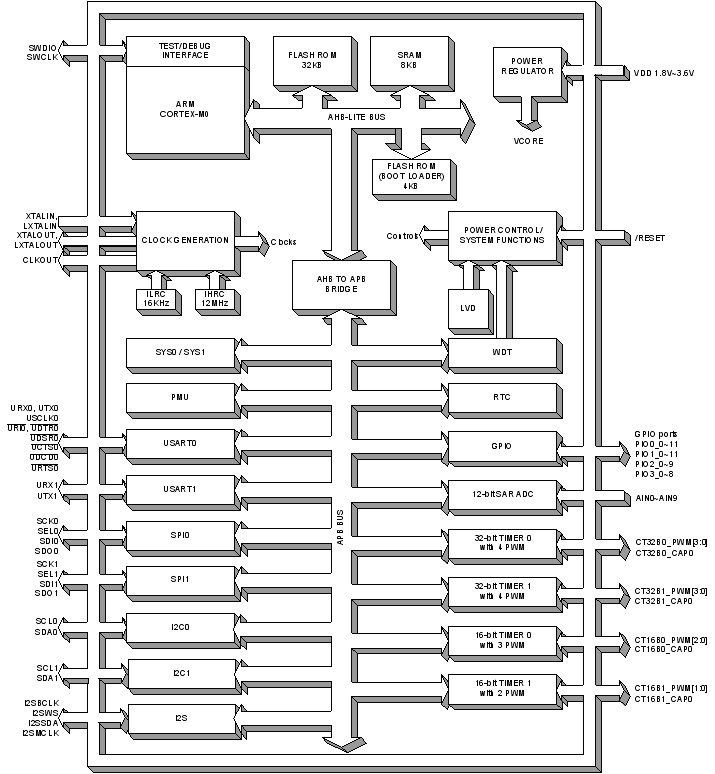

SN32F700 series 32-bit micro-controller is a new series of extremely Low Power Consumption
and High Performance MCU powered by ARM Cortex M0 processor with Flash ROM architecture.
SN32F700 series MCU is high performance and wide operating range (1.8V~3.6V, 50 MHz
maximum frequency). The device is designed with the excellent IC structure including
the program memory up to 32KB Flash ROM, data memory of 8KB RAM, Nested Vectored Interrupt
Controller (NVIC), two 16-bit timers, two 32-bit timers, I2C, SPI, USART, I2S interfaces,
10-channel 12-bit SAR ADC, and flexible operating modes. There are several system
clock sources, including internal 12MHz RC oscillator, internal 16KHz RC oscillator,
external High Speed crystal, external Low Speed crystal, and PLL. Under Flash ROM
platform, SN32F700 series MCU builds in in-system-programming (ISP) function extending
to EEPROM emulation. Powerful functionality, high reliability and low power consumption
can apply to battery level application easily.
